Intelligent Integrated Power Capacitors
YD-868
Integrated design, centralized reactive power compensation for power distribution system, local power factor correction for motor equipment, energy-saving system based on power factor correction.

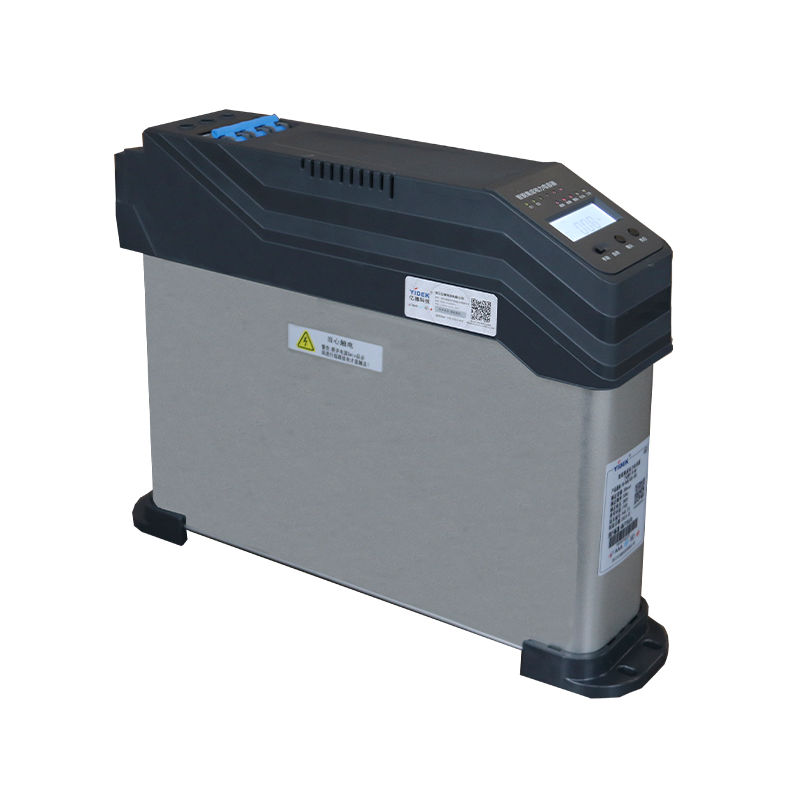

The YD-868 intelligent integrated power capacitor is a new generation of reactive power compensation equipment with a high breaking capacity, offering high efficiency and energy savings for 0.4kV low-voltage power grids, reducing line losses, improving power factor, and enhancing power quality. It consists of an intelligent measurement and control unit, a zero-crossing switching unit, a protection unit, and two (△-type) or two (Y-type) low-voltage power capacitors. This eliminates the bulky and cumbersome structure of traditional reactive power compensation devices. This new generation of low-voltage reactive power compensation equipment offers improved compensation effectiveness, a smaller footprint, lower power consumption, a lower price, greater cost savings, greater flexibility, easier maintenance, a longer service life, and increased reliability, meeting the stringent reactive power compensation requirements of modern smart grids.

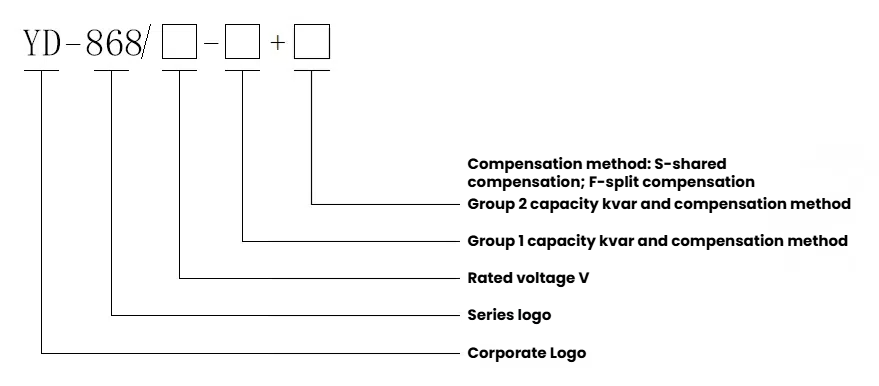

1. Model Description
2. Conventional product models and specificationsTable 1
Compensation method | Capacity
(kvar)
| Rated voltage (V) | Capacitor Combination (Kvar) | Height H (mm) |
Three-phase compensation | 50 | 450 | 25+25 | 320 |
40 | 450 | 20+20 | 280 |
30 | 450 | 20+10 | 280 |
20 | 450 | 10+10 | 240 |
15 | 450 | 10+5 | 195 |
Partial compensation | 30 | 250 |
| 280 |
20 | 250 | | 240 |
10 | 250 |
| 195 |
Double points compensation | 30 | 250 | 20+10 | 280 |
20 | 250 | 10+10 | 240 |
10 | 250 | 5+5 | 195 |
3. Technical Parameters and Operating Environment
3.1 Input Voltage: 380V ± 20%.
3.2 Operating Frequency: 50Hz ± 2.5Hz.
3.3 Implementation Standard: GB/T 15576.
3.4 Operating Temperature: -25°C to +55°C.
3.5 Relative Humidity: Maximum temperature: +40°C, relative humidity not exceeding 50%, higher relative humidity is permitted at lower temperatures, taking into account the possibility of occasional condensation due to temperature fluctuations.
3.6 Altitude: ≤ 2000m.
