Inlet And Outlet Reactors/Inverter Reactors

YD-ACL (incoming line reactor)、YD-OCL (outgoing line reactor)

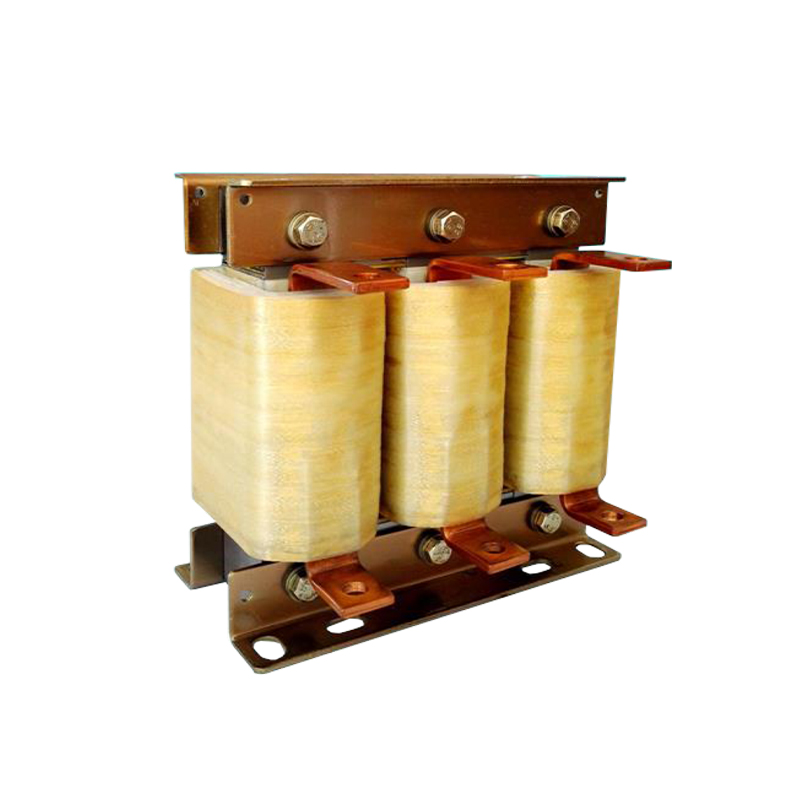

Used in the input and output side of the inverter, connected in series with the inverter. When there are a large number of harmonic sources such as rectifiers and converters in the low-voltage power grid, the high-order harmonics generated will seriously endanger the safe operation of the main transformer and other electrical equipment. After the reactor is connected to the inverter, it can effectively absorb the harmonics of the power grid, reduce the leakage current caused by the input high-order harmonics, reduce the noise and eddy current loss of the motor, and be used for smooth filtering, reduce transient voltage dv/dt, and extend the life of the motor.

Consult

Features Technical Indicators Overall Dimension

Application:
This series of dry-type iron core reactors are used at the input and output sides of the inverter and are connected in series with the inverter. When there are a large number of harmonic sources such as rectifiers and converters in the low-voltage power grid, the high-order harmonics generated by them will seriously endanger the safe operation of the main transformer and other electrical equipment. After the reactor is connected to the inverter, it can effectively absorb the harmonics of the power grid, reduce the leakage current caused by the input high-order harmonics, reduce the noise and eddy current loss of the motor, and be used for smoothing and filtering, reduce transient voltage dv/dt, and extend the life of the motor.
Use conditions:
Altitude: Altitude does not exceed 1000m
Ambient temperature: -40℃～+40℃
Relative humidity: not more than 90%
Maximum wind speed: 35m/s
Earthquake intensity: not more than 8 levels
Place of use: Indoors

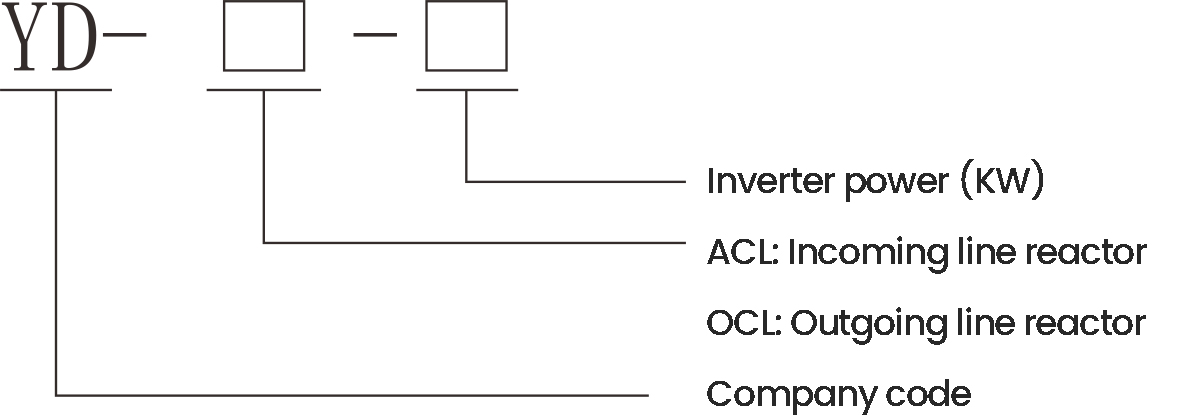

Product model and meaning:

Technical Parameters:

System voltage(KV)	0.4~1
Rated frequency(Hz)	50
Phase	Three-phase
Terminal Blocks	A—X, B—Y, C--Z
Rated power(KW)
Rated current(A)
Device Type	Indoor type
Cooling method	AN
Heat resistance grade	F-Class

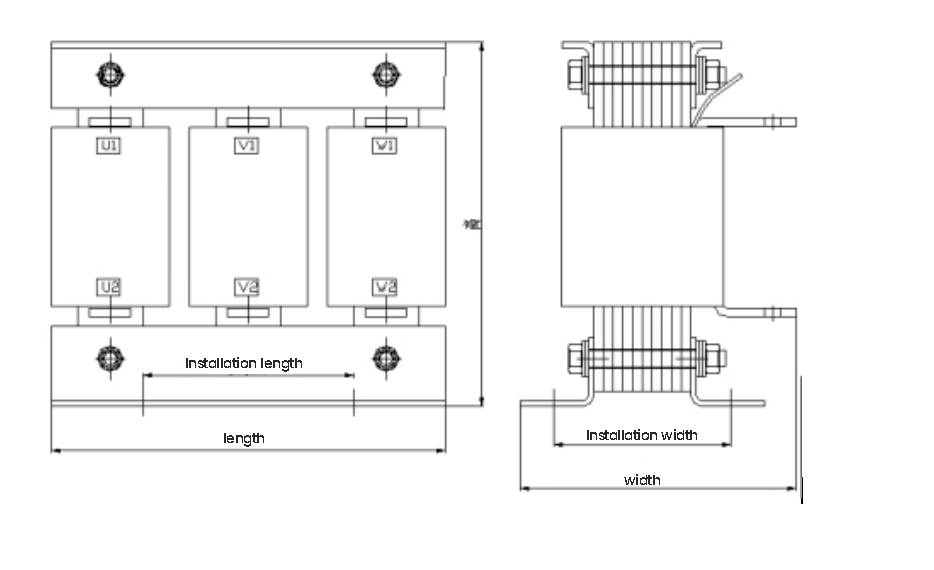

Product size

Incoming line reactor Product model	Inverter power（kW）	Rated current（A）	Overall dimensions (aluminum) Lengthwidthheight	Installation Dimensions	Overall dimensions (copper) Lengthwidthheight	Installation Dimensions
YD-ACL-1.5~2.2	1.5~2.2	10	10090110	80*65	10090110	80*65
YD-ACL-3.7~5.5	3.7~5.5	15	10090110	80*65	10090110	80*65
YD-ACL-7.5	7.5	20	160120140	80*60	10090110	80*65
YD-ACL-11	11	30	160120140	80*60	160120140	80*60
YD-ACL-15	15	40	160120140	80*60	160120140	80*60
YD-ACL-18~18.5	18~18.5	50	160120140	80*60	160135140	80*75
YD-ACL-22	22	60	160135140	80*75	160145140	80*85
YD-ACL-30	30	80	160145140	80*85	190140160	80*85
YD-ACL-37	37	90	190140160	80*85	190140160	80*85
YD-ACL-45	45	120	190140160	80*85	190150160	80*95
YD-ACL-55	55	150	225150220	120*85	225150220	120*85
YD-ACL-75	75	200	225150220	120*85	225150220	120*85
YD-ACL-90~93	90~93	230	225150220	120*85	225150220	120*85
YD-ACL-110	110	250	225150220	120*85	225150220	120*85
YD-ACL-132	132	290	225160220	120*95	225160220	120*95
YD-ACL-160	160	330	260150250	135*85	260160250	135*95
YD-ACL-185	185	390	260160250	135*95	260170250	135*105
YD-ACL-220	220	490	260160250	135*95	260170250	135*105
YD-ACL-240~250	240~250	530	290160310	135*95	290170310	135*105
YD-ACL-280	280	600	290160310	135*95	290180310	135*115
YD-ACL-300~315	300~315	660	290170310	135*105	290180310	135*115
YD-ACL-350~355	350~355	720	290170310	135*105	290210310	135*135
YD-ACL-380	380	800	290170310	135*105	290210310	135*135
YD-ACL-450	450	1000	290190310	135*125	290250310	135*175
YD-ACL-550	550	1250	350180320	160*120	350200320	160*140

Outgoing line reactor Product model	Inverter power（kW）	Rated current（A）	Overall dimensions (aluminum) Lengthwidthheight	Installation Dimensions	Overall dimensions (copper) Lengthwidthheight	Installation Dimensions
YD-OCL-1.5~2.2	1.5~2.2	10	10090110	80*65	10090110	80*65
YD-OCL-3.7~5.5	3.7~5.5	15	10090110	80*65	10090110	80*65
YD-OCL-7.5	7.5	20	160120140	80*60	10090110	80*65
YD-OCL-11	11	30	160120140	80*60	160120140	80*60
YD-OCL-15	15	40	160120140	80*60	160120140	80*60
YD-OCL-18~18.5	18~18.5	50	160120140	80*60	160135140	80*75
YD-OCL-22	22	60	160135140	80*75	160145140	80*85
YD-OCL-30	30	80	160145140	80*85	190140160	80*85
YD-OCL-37	37	90	190140160	80*85	190140160	80*85
YD-OCL-45	45	120	190140160	80*85	190150160	80*95
YD-OCL-55	55	150	225150220	120*85	225150220	120*85
YD-OCL-75	75	200	225150220	120*85	225150220	120*85
YD-OCL-90~93	90~93	230	225150220	120*85	225150220	120*85
YD-OCL-110	110	250	225150220	120*85	225150220	120*85
YD-OCL-132	132	290	225160220	120*95	225160220	120*95
YD-OCL-160	160	330	260150250	135*85	260160250	135*95
YD-OCL-185	185	390	260160250	135*95	260170250	135*105
YD-OCL-220	220	490	260160250	135*95	260170250	135*105
YD-OCL-240~250	240~250	530	290160310	135*95	290170310	135*105
YD-OCL-280	280	600	290160310	135*95	290180310	135*115
YD-OCL-300~315	300~315	660	290170310	135*105	290180310	135*115
YD-OCL-350~355	350~355	720	290170310	135*105	290210310	135*135
YD-OCL-380	380	800	290170310	135*105	290210310	135*135
YD-OCL-450	450	1000	290190310	135*125	290250310	135*175
YD-OCL-550	550	1250	350180320	160*120	350200320	160*140
