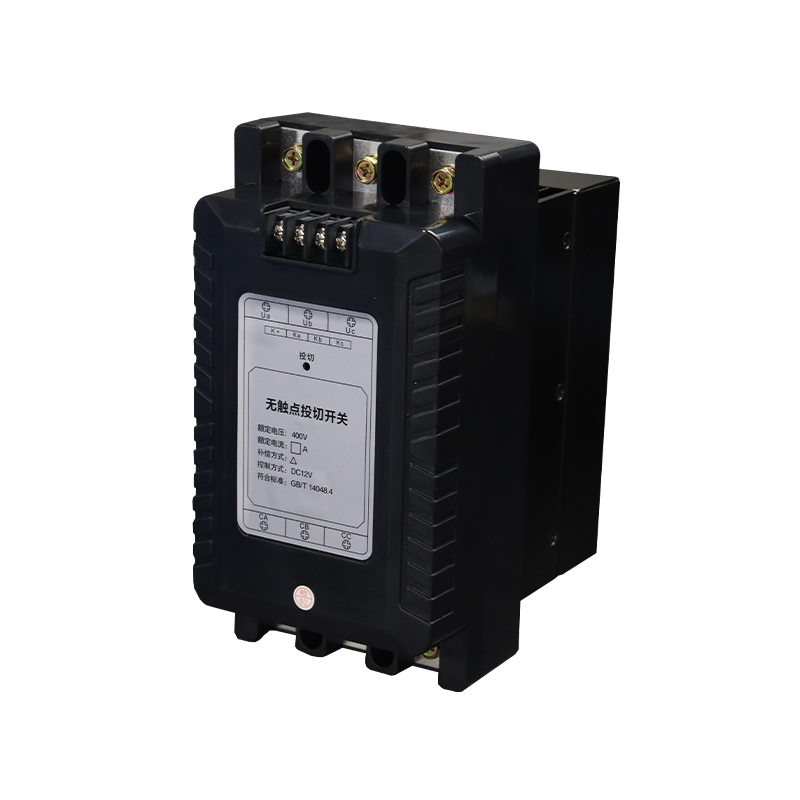

Low Voltage Dynamic Switch
YD-TSCL
Easy installation, response time less than 20ms, permanent self-control, display of operation/fault status
TSC series low voltage dynamic reactive power regulator is an electronic power device that can quickly switch power capacitors. The main circuit of the regulator adopts anti-parallel thyristor module, which is composed of components such as photoelectric isolation and logic control. It has functions such as "zero switching", over-temperature heat dissipation, and over-temperature protection. It has fast response time, stable performance, strong anti-interference ability, and allows frequent switching. There is no inrush current, no noise, and no sparks when switching capacitors.
Use conditions
Ambient temperature: -25℃~~+55℃
Altitude: ≤2000M
Atmospheric conditions: Air humidity ≤90%
Environmental conditions: No conductive dust
Rated voltage: AC 400V 230V
Rated frequency: 50Hz
Rated current: 45A, 55A, 85A
Control voltage: DC 12V
Dynamic response time: ≤20ms
