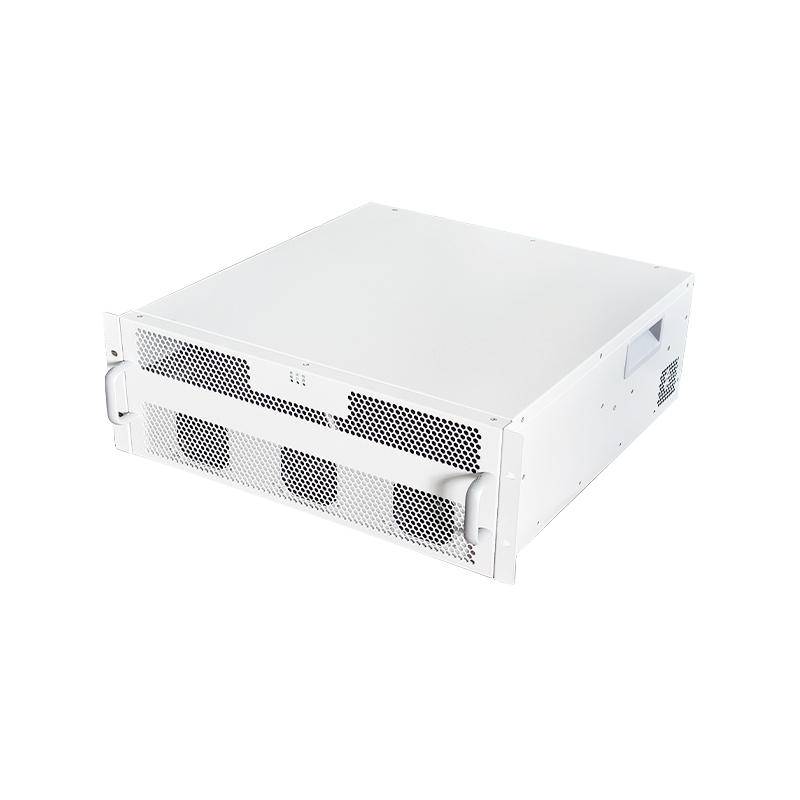

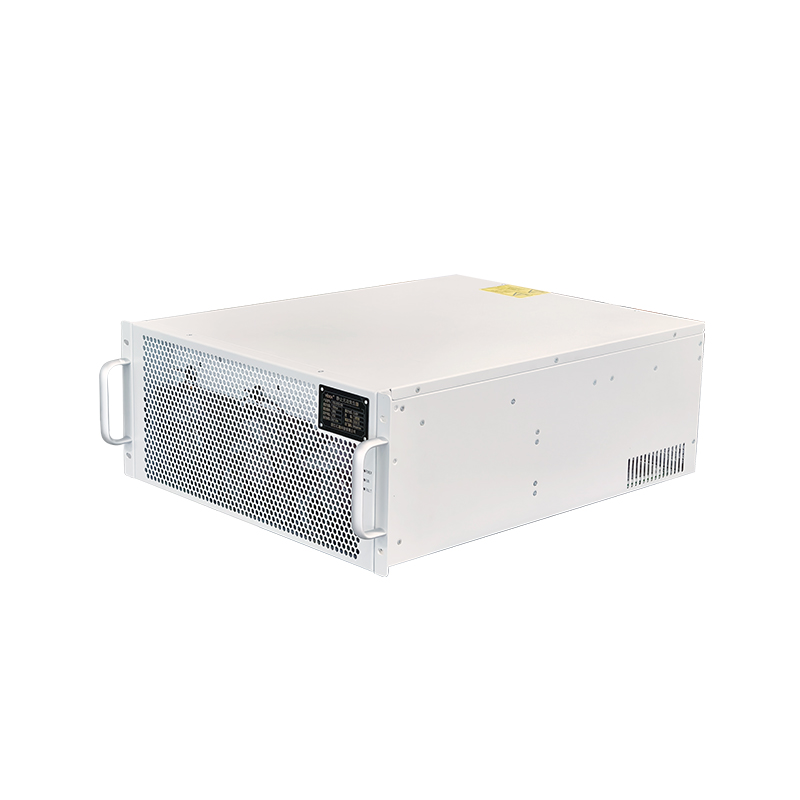

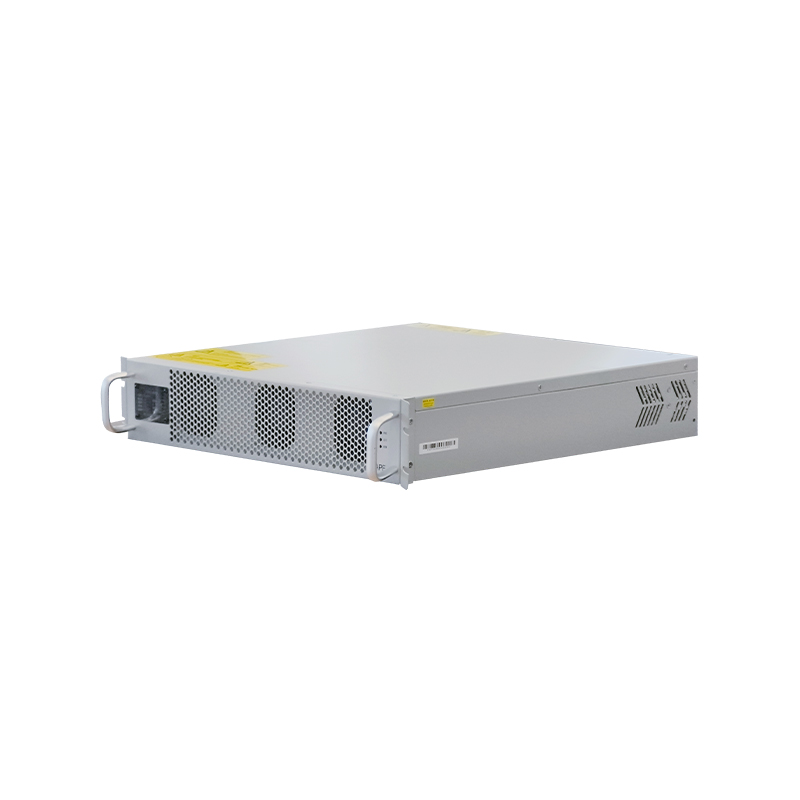

Low-voltage Active Power Filter(APF)

YDK-APF
Modular structure, high reliability, strong anti-pollution ability, flexible application scheme, easy installation, simple maintenance, integrated multiple functions, solve multiple problems

Consult

Features Technical Indicators Overall Dimension

An active power filter (APF) is a self-commutated bridge circuit that is directly connected in parallel to the power grid through a reactor, and the phase and amplitude of the output voltage on the AC side of the bridge circuit are appropriately adjusted or its AC side current is directly controlled, so that the circuit actively generates harmonic currents that meet the requirements and achieves the purpose of dynamic harmonic compensation.

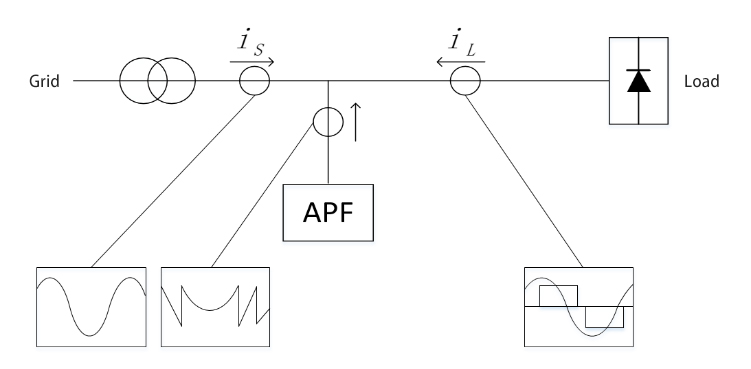

APF working principle diagram

50A APF Technical Parameters

System Parameters
Rated voltage (line voltage)	268V～458V
Rated frequency	45Hz～55Hz
Wiring method	Three-phase four-wire + PE/three-phase three-wire + PE
Performance Indicators
Harmonic control capability	50A (2nd to 61st harmonics or selectable harmonics)
Unbalanced governance capacity	45A
Total response time	＜5 ms
Active power loss	＜3%
Protect	Multiple Protect functions such as overcurrent, overheating, overvoltage, etc.
Environmental conditions
Protection level	Standard IP20, higher protection level can be customized
Ambient temperature	Working temperature: -10℃～50℃ (use at reduced capacity above 40℃) Storage temperature: -25℃～70℃
Ambient humidity	15%～90%（20℃）
Altitude	<2000m, reduce the capacity when above 2000m
Place of use	indoor

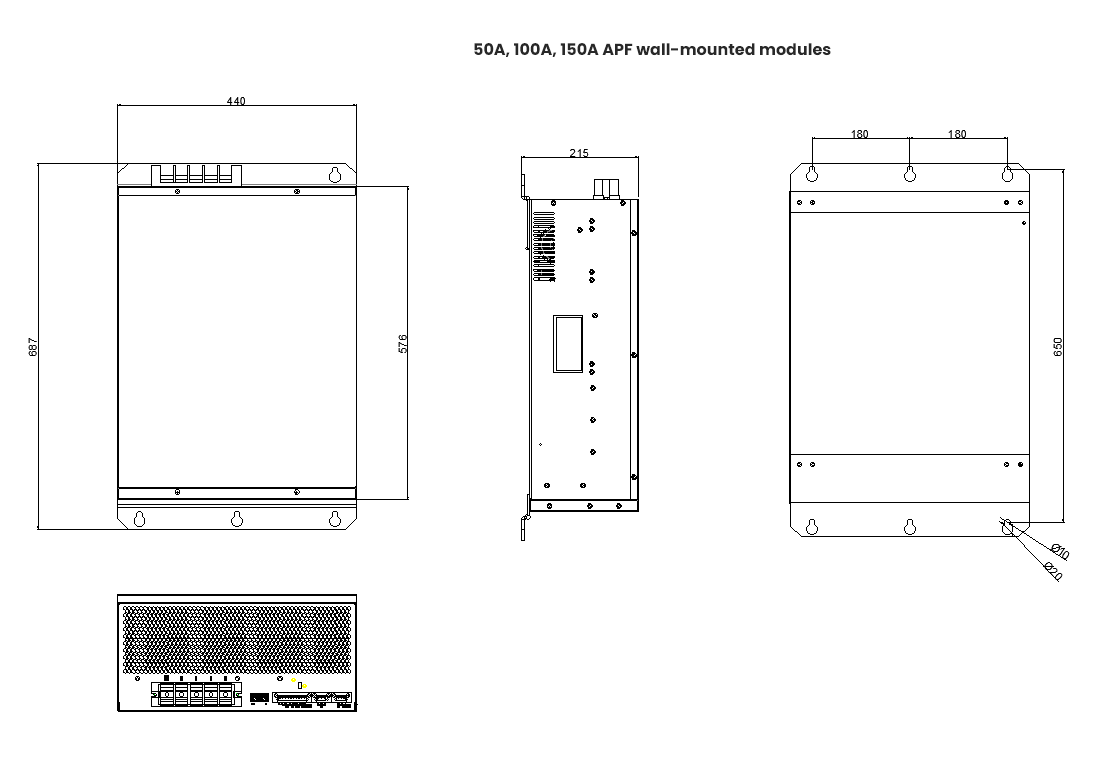

Mechanical properties
Overall dimensions (width x depth x height)	440mm×576mm×200mm
Quality	35kg
Installation inclination	<5 degrees
Material	Electrogalvanizing
Communication display
Communication interface	RS485
Parallel connection between modules	CAN

100A APF Technical Parameters

System Parameters
Rated voltage (line voltage)	268V～458V
Rated frequency	45Hz～55Hz
Wiring method	Three-phase four-wire + PE/three-phase three-wire + PE
Performance Indicators
Harmonic control capability	100A (2nd to 61st harmonics or selectable harmonics)
Unbalanced governance capacity	75A
Total response time	＜5 ms
Active power loss	＜3%
Protect	Multiple Protect functions such as overcurrent, overheating, overvoltage, etc.
Environmental conditions
Protection level	Standard IP20, higher protection level can be customized
Ambient temperature	Working temperature: -10℃～50℃ (use at reduced capacity above 40℃) Storage temperature: -25℃～70℃
Ambient humidity	15%～90%（20℃）
Altitude	<2000m, reduce the capacity when above 2000m
Place of use	indoor
Mechanical properties
Overall dimensions (width x depth x height)	440mm×576mm×200mm
Quality	35kg
Installation inclination	<5 degrees
Material	Electrogalvanizing
Communication display
Communication interface	RS485
Parallel connection between modules	CAN

150A APF Technical Parameters

System Parameters
Rated voltage (line voltage)	268V～458V
Rated frequency	45Hz～55Hz
Wiring method	Three-phase four-wire + PE/three-phase three-wire + PE

Harmonic control capability	150A (2nd to 61st harmonics or selectable harmonics)
Unbalanced governance capacity	100A
Total response time	＜5 ms
Active power loss	＜3%
Protect	Multiple Protect functions such as overcurrent, overheating, overvoltage, etc.
Environmental conditions
Protection level	Standard IP20, higher protection level can be customized
Ambient temperature	Working temperature: -10℃～50℃ (use at reduced capacity above 40℃) Storage temperature: -25℃～70℃
Ambient humidity	15%～90%（20℃）
Altitude	<2000m, derated for altitudes above 2000m
Place of use	indoor
Mechanical properties
Overall dimensions (width x depth x height)	440mm×576mm×200mm
Quality	35kg
Installation inclination	<5 degrees
Material	Electrogalvanizing
Communication display
Communication interface	RS485
Parallel connection between modules	CAN

200A APF Technical Parameters

System Parameters
Rated voltage (line voltage)	268V～458V
Rated frequency	45Hz～55Hz
Wiring method	Three-phase four-wire + PE/three-phase three-wire + PE
Performance Indicators
Harmonic control capability	200A (2nd to 61st harmonics or selectable harmonics)
Unbalanced governance capacity	150A
Total response time	＜5 ms
Active power loss	＜3%
Protect	Multiple Protect functions such as overcurrent, overheating, overvoltage, etc.
Environmental conditions
Protection level	Standard IP20, higher protection level can be customized
Ambient temperature	Working temperature: -10℃～50℃ (use at reduced capacity above 40℃) Storage temperature: -25℃～70℃
Ambient humidity	15%～90%（20℃）
Altitude	<2000m, reduce the capacity when above 2000m
Place of use	indoor

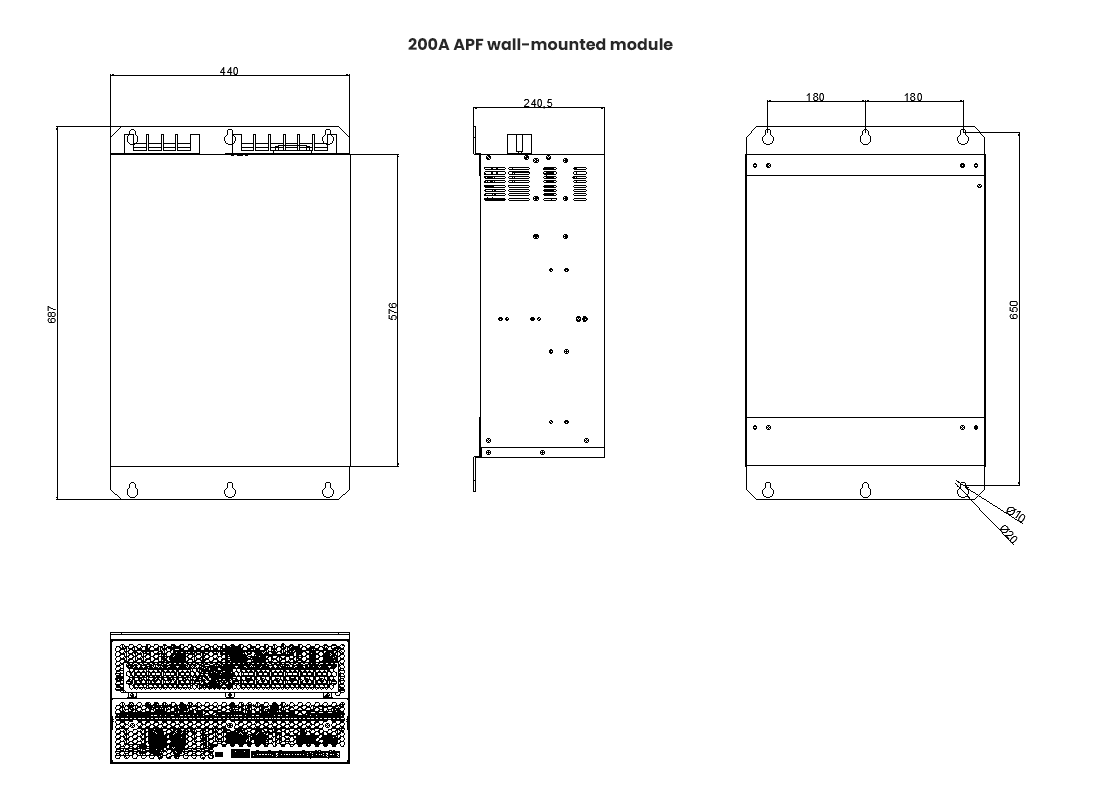

Mechanical properties
Overall dimensions (width x depth x height)	440mm×576mm×228mm
Quality	51kg
Installation inclination	<5 degrees
Material	Electrogalvanizing
Communication display
Communication interface	RS485
Parallel connection between modules	CAN
