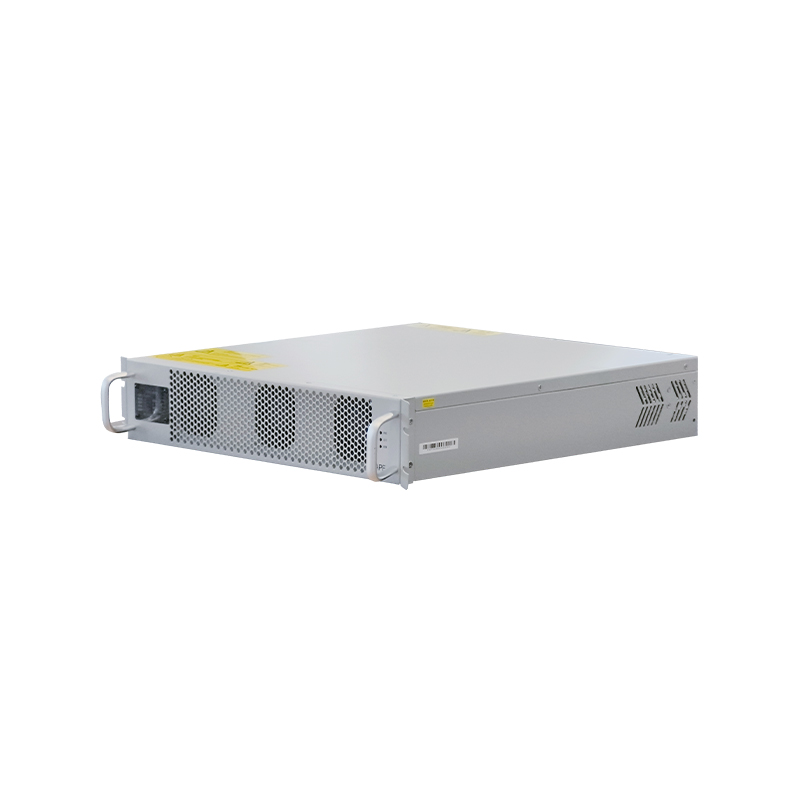

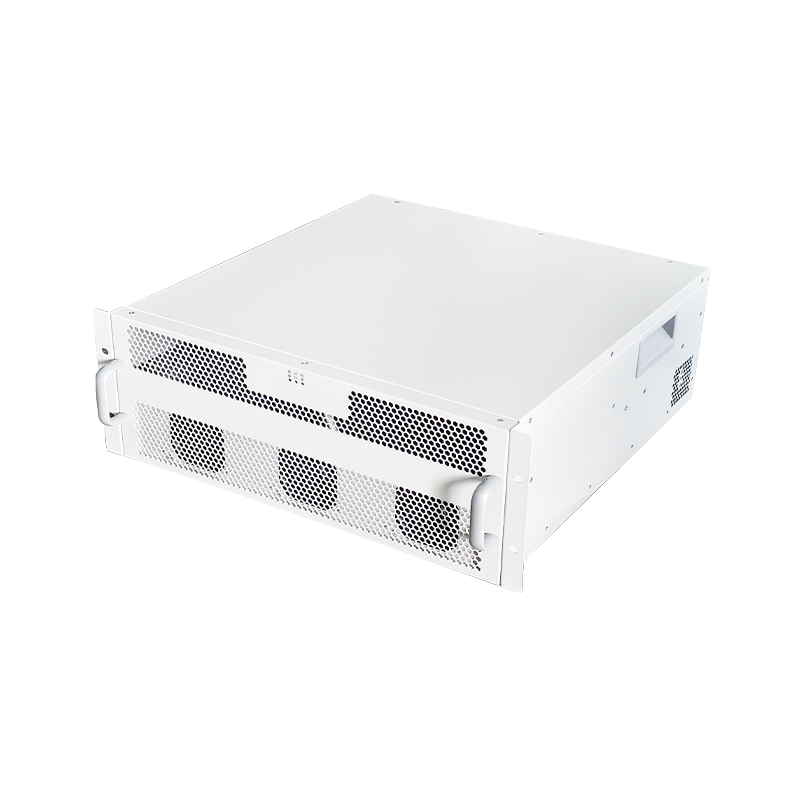

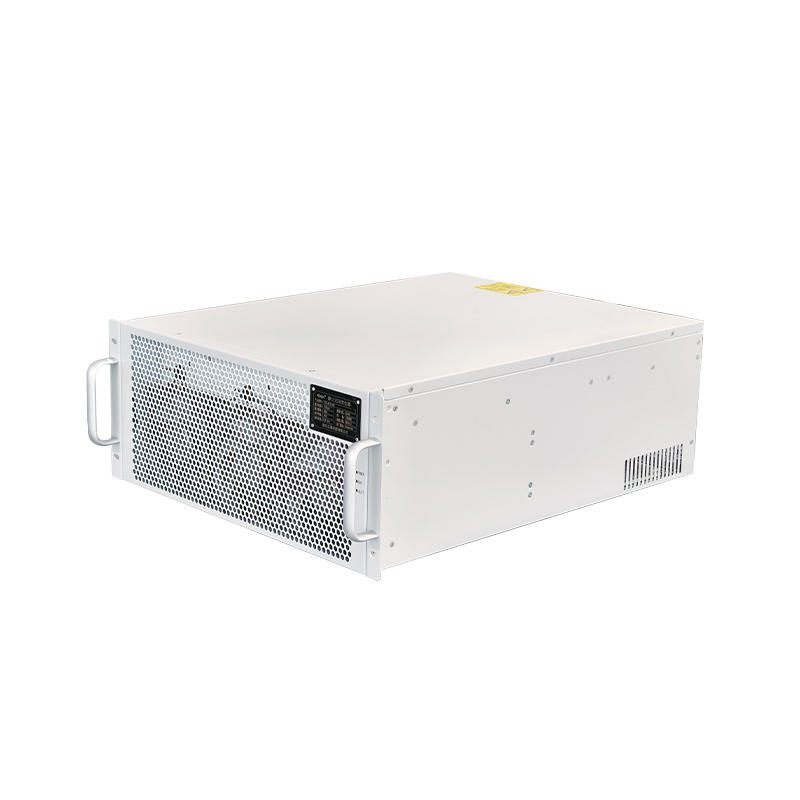

Low-voltage Static Var Generator（SVG）

YDK-SVG
Modular structure, high reliability, strong anti-pollution ability, flexible application scheme, easy installation, simple maintenance, integrated multiple functions, solve multiple problems

Consult

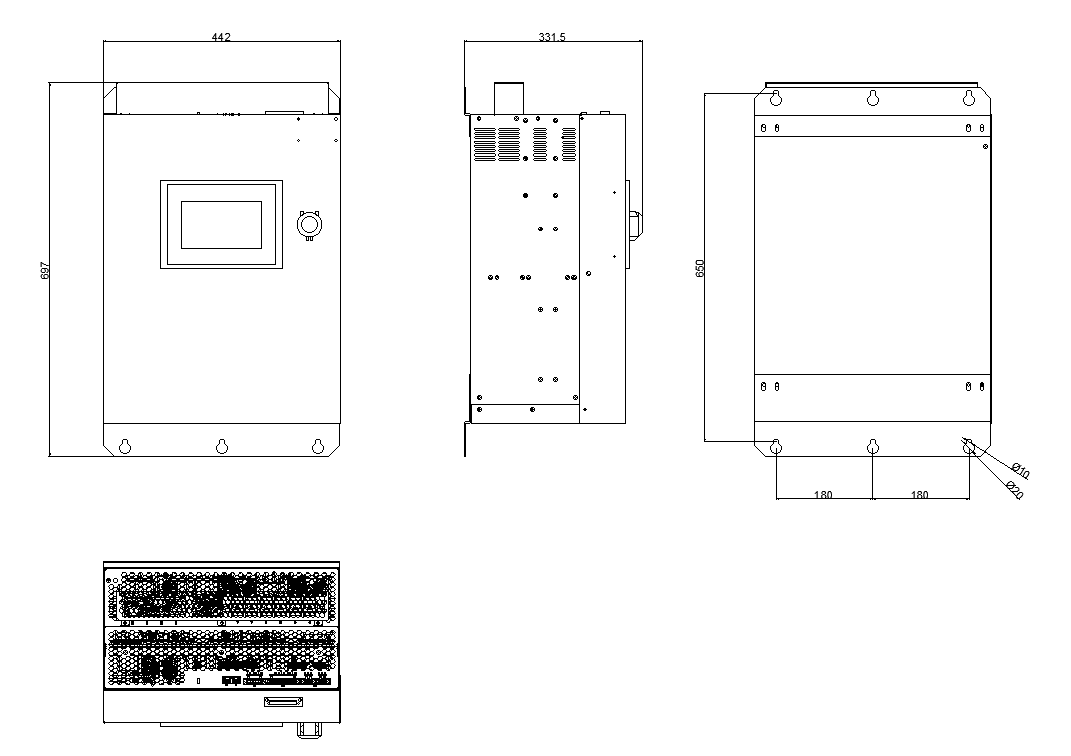

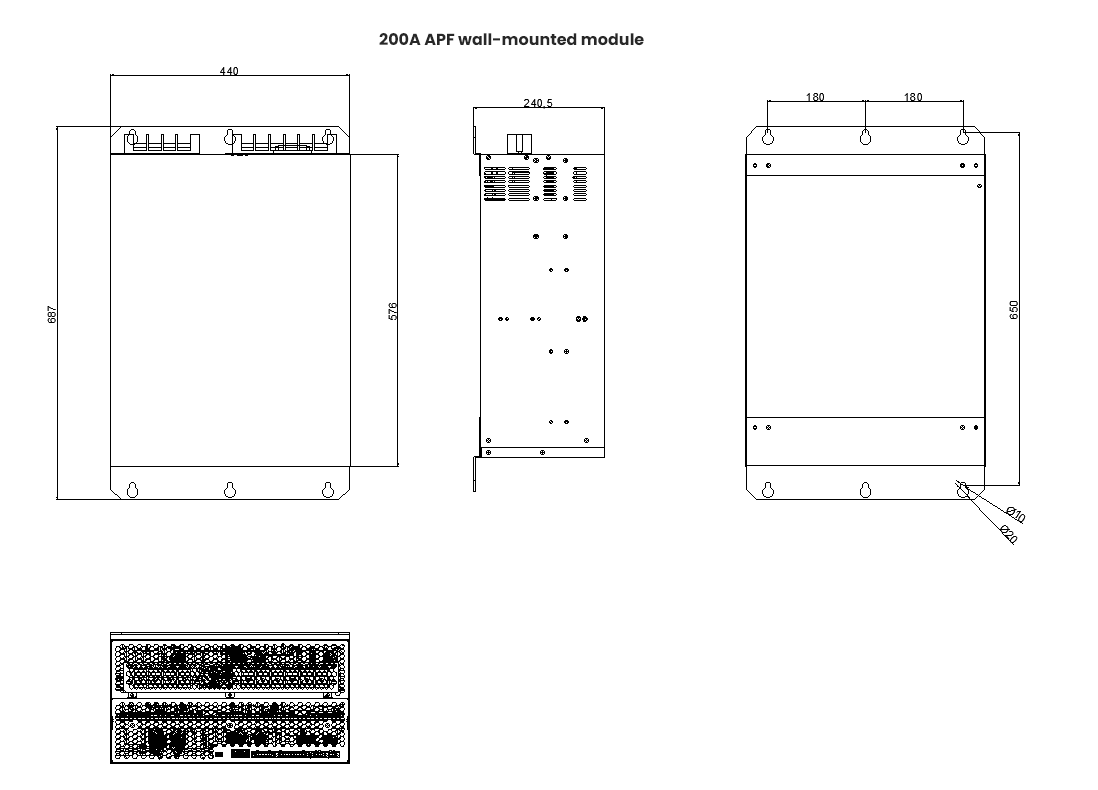

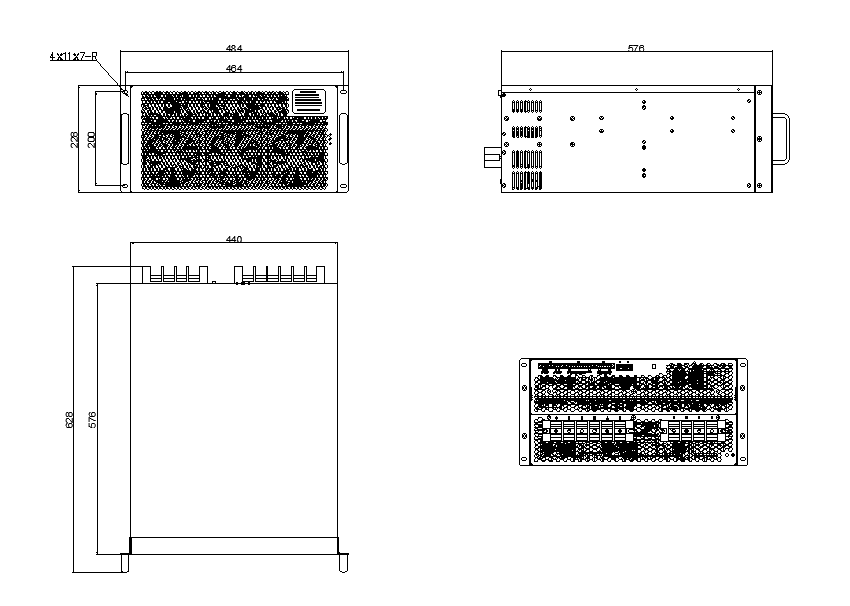

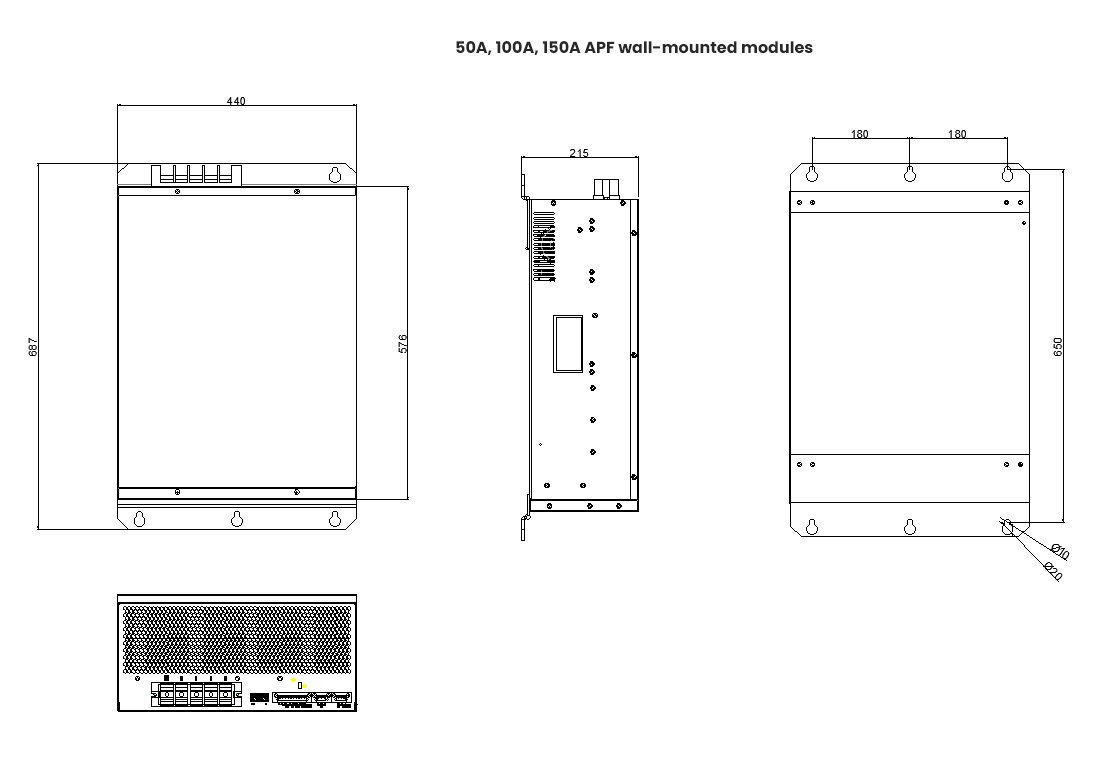

Features Technical Indicators Overall Dimension

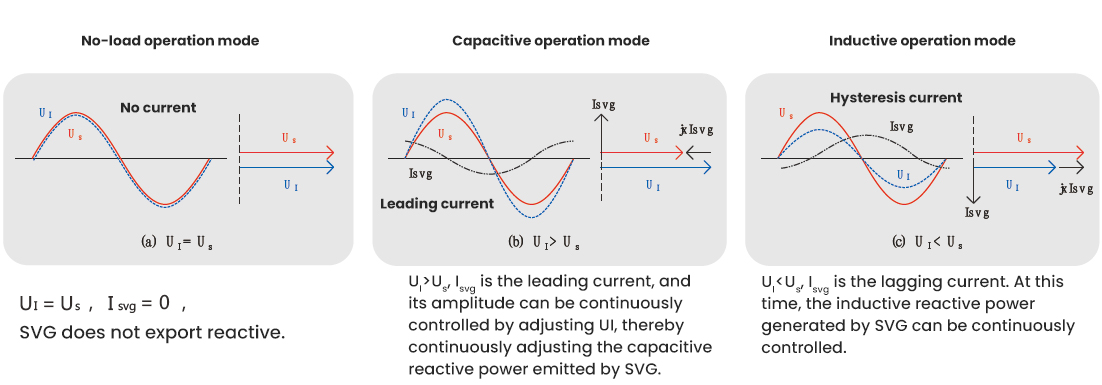

A low-voltage static Var generator (SVG) is a self-commutated bridge circuit that is directly connected in parallel to the power grid through a reactor. The phase and amplitude of the output voltage on the AC side of the bridge circuit are appropriately adjusted, or the AC side current is directly controlled, so that the circuit actively generates reactive current that meets the requirements, thereby achieving the purpose of dynamic reactive compensation.

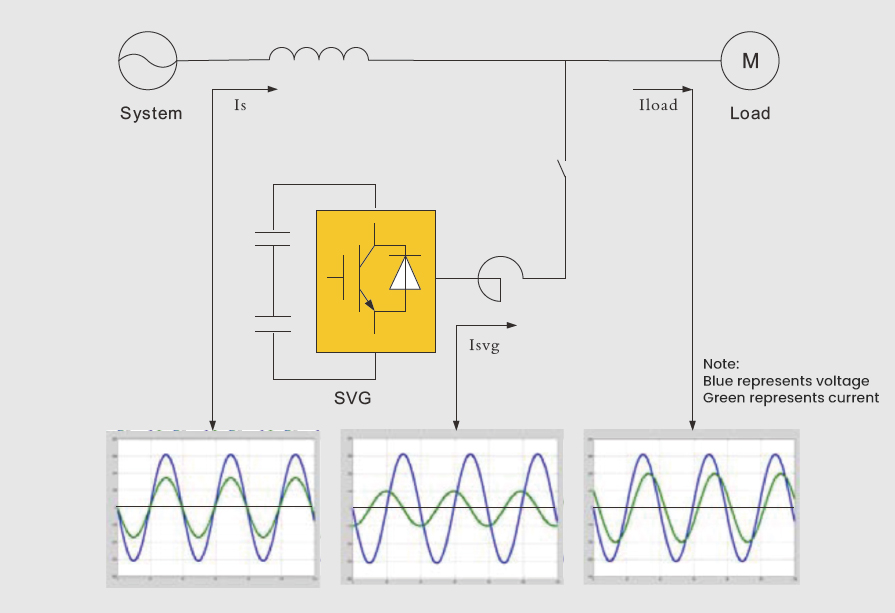

SVG working principle diagram

50kvar technical parameters

System Parameters
Rated voltage (line voltage)	268V～458V
Rated frequency	45Hz～55Hz
Wiring method	Three-phase four-wire + PE/three-phase three-wire + PE
Performance Indicators
Single module capacity	50kvar
Total response time	＜5 ms
Active power loss	＜3%
Protect	Multiple Protect functions such as overcurrent, overheating, overvoltage, etc.
Environmental conditions
Protection level	Standard IP20, higher protection level can be customized
Ambient temperature	Working temperature: -10℃～50℃ (use at reduced capacity above 40℃) Storage temperature: -25℃～70℃
Ambient humidity	5%～95% (no condensation or icing in the device)
Altitude	<2000m, reduce the capacity when above 2000m
Place of use	indoor
Mechanical properties

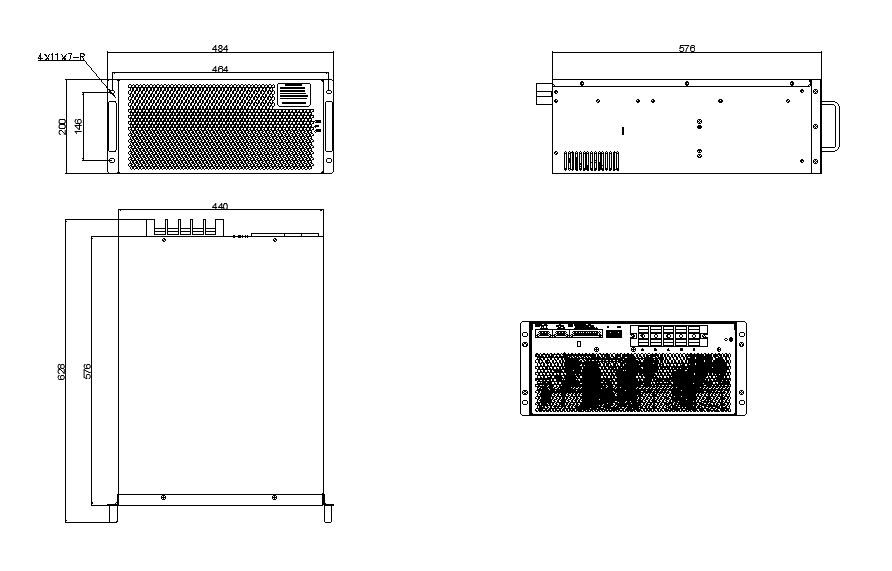

Overall dimensions (width x depth x height)	440mm×576mm×200mm
Quality	35kg
Installation inclination	<5 degrees
Material	Electrogalvanizing
Communication display
Communication interface	RS485
Parallel connection between modules	CAN

100kvar technical parameters

System Parameters
Rated voltage (line voltage)	268V～458V
Rated frequency	45Hz～55 Hz
Wiring method	Three-phase four-wire + PE/three-phase three-wire + PE
Performance Indicators
Single module capacity	100kvar
Total response time	＜5 ms
Active power loss	＜3%
Protect	Multiple Protect functions such as overcurrent, overheating, overvoltage, etc.
Environmental conditions
Protection level	Standard IP20, higher protection level can be customized
Ambient temperature	Working temperature: -10℃～50℃ (use at reduced capacity above 40℃) Storage temperature: -25℃～70℃
Ambient humidity	5%～95% (no condensation or icing in the device)
Altitude	<2000m, reduce the capacity when above 2000m
Place of use	indoor
Mechanical properties
Overall dimensions (width x depth x height)	440mm×576mm×200mm
Quality	35kg
Installation inclination	<5 degrees
Material	Electrogalvanizing
Communication display
Communication interface	RS485
Parallel connection between modules	CAN

150kvar technical parameters

System Parameters
Rated voltage (line voltage)	268V～458V
Rated frequency	45Hz～55 Hz
Wiring method	Three-phase four-wire + PE/three-phase three-wire + PE
Performance Indicators
Single module capacity	150kvar
Total response time	＜5 ms
Active power loss	＜3%
Protect	Multiple Protect functions such as overcurrent, overheating, overvoltage, etc.
Environmental conditions
Protection level	Standard IP20, higher protection level can be customized
Ambient temperature	Working temperature: -10℃～50℃ (use at reduced capacity above 40℃) Storage temperature: -25℃～70℃
Ambient humidity	5%～95% (no condensation or icing in the device)
Altitude	<2000m, reduce the capacity when above 2000m
Place of use	indoor
Mechanical properties
Overall dimensions (width x depth x height)	440mm×576mm×228mm
Quality	51kg
Installation inclination	<5 degrees
Material	Electrogalvanizing
Communication display
Communication interface	RS485
Parallel connection between modules	CAN
