Anhui Guanshan Instrument Co., Ltd.

01 Project Description

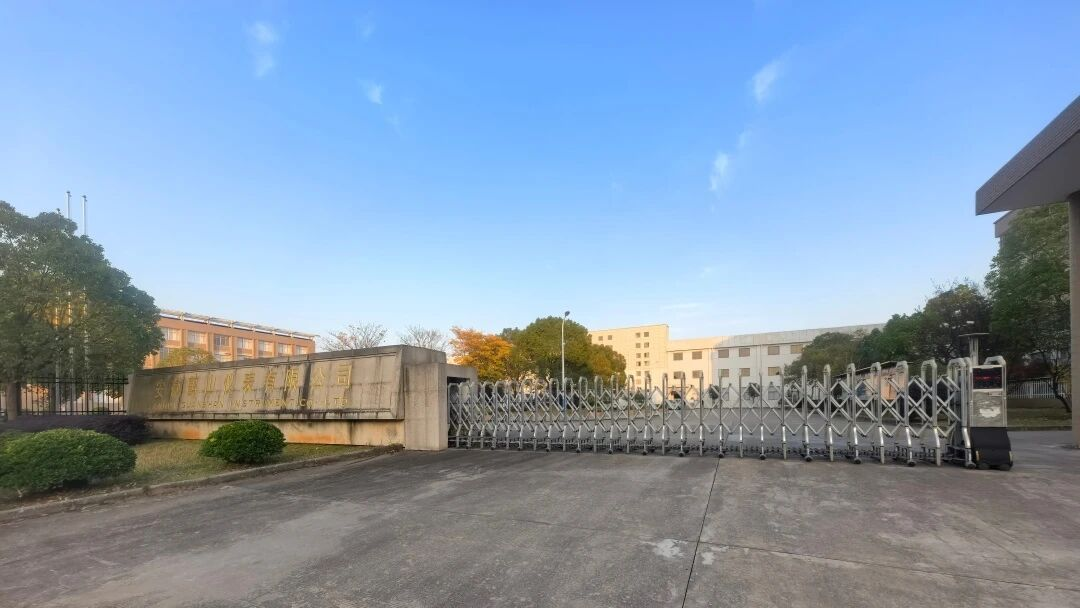

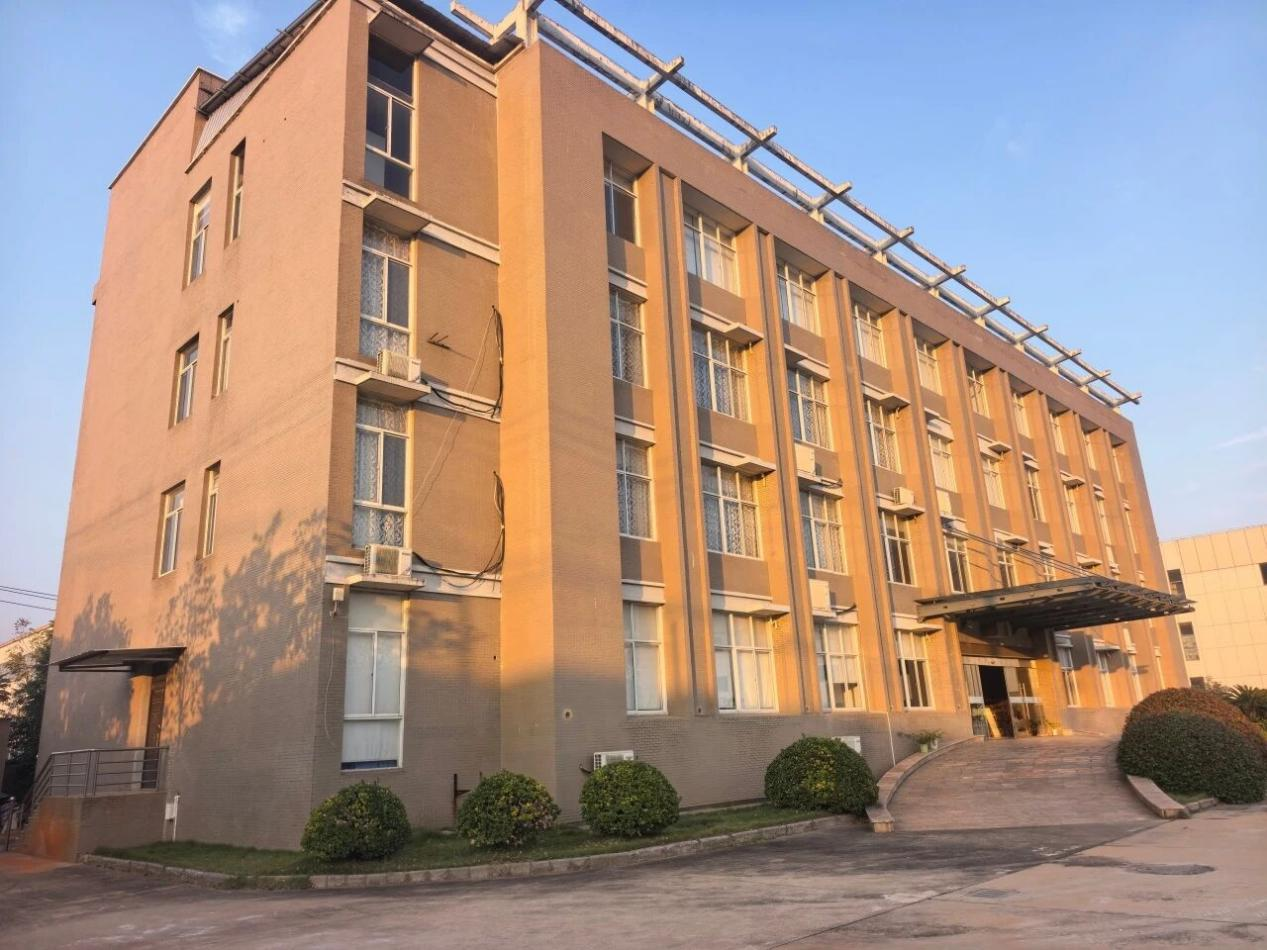

Anhui Guanshan Instrument Co., Ltd. is one of the earliest professional enterprises in China engaged in the research and development and manufacturing of industrial instruments. The company has long been committed to the innovation and production of industrial instruments such as flow and pressure meters, and its products are used in various industrial fields due to their reliable performance and stable accuracy. Through continuous technological accumulation and process innovation, Guanshan Instrument has developed into a technology-based enterprise that emphasizes quality control and possesses independent research and development capabilities.

After installing a photovoltaic power generation system, Anhui Guanshan Instrument Co., Ltd. faced new challenges in reactive power management. Its existing compensation equipment could not adapt to the fluctuating characteristics of photovoltaic power generation, resulting in a non-compliant power factor at the grid connection point and incurring fines. Therefore, the company urgently needed a reactive power compensation solution capable of precise management and dynamic response to ensure the efficient and compliant use of green energy.

02 Solution

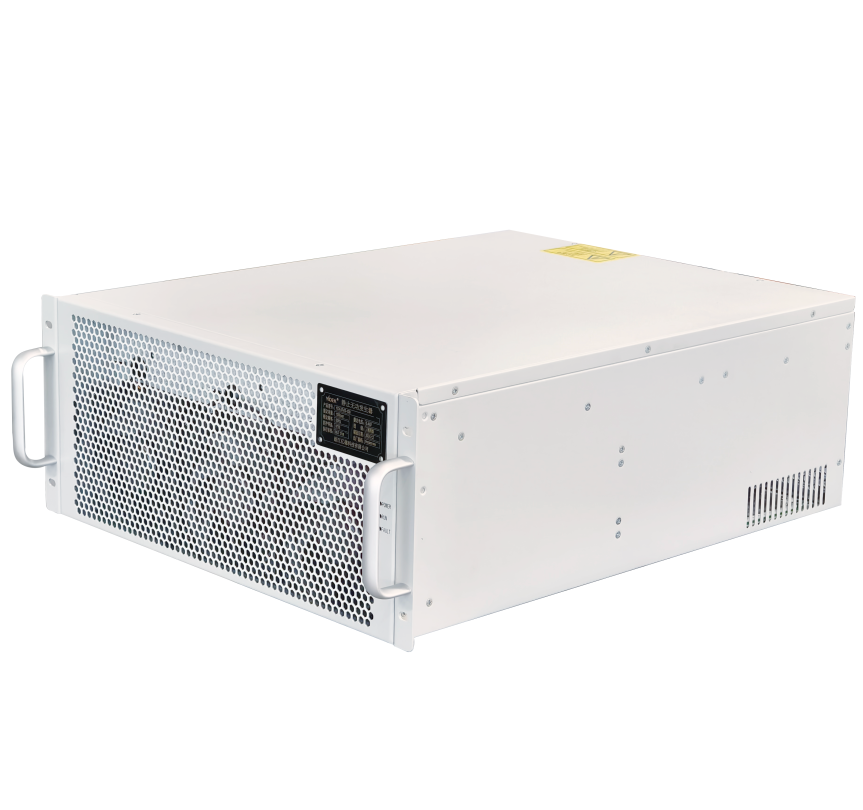

YDK-SVG Static Var Generator

It is a new type of power electronic device used for dynamic reactive power compensation and three-phase imbalance control. It can analyze the reactive power content of the load current by sampling the load current, then control and actively output the corresponding reverse reactive current, and respond quickly to compensate for the reactive power component in the load current, thereby achieving dynamic tracking compensation.

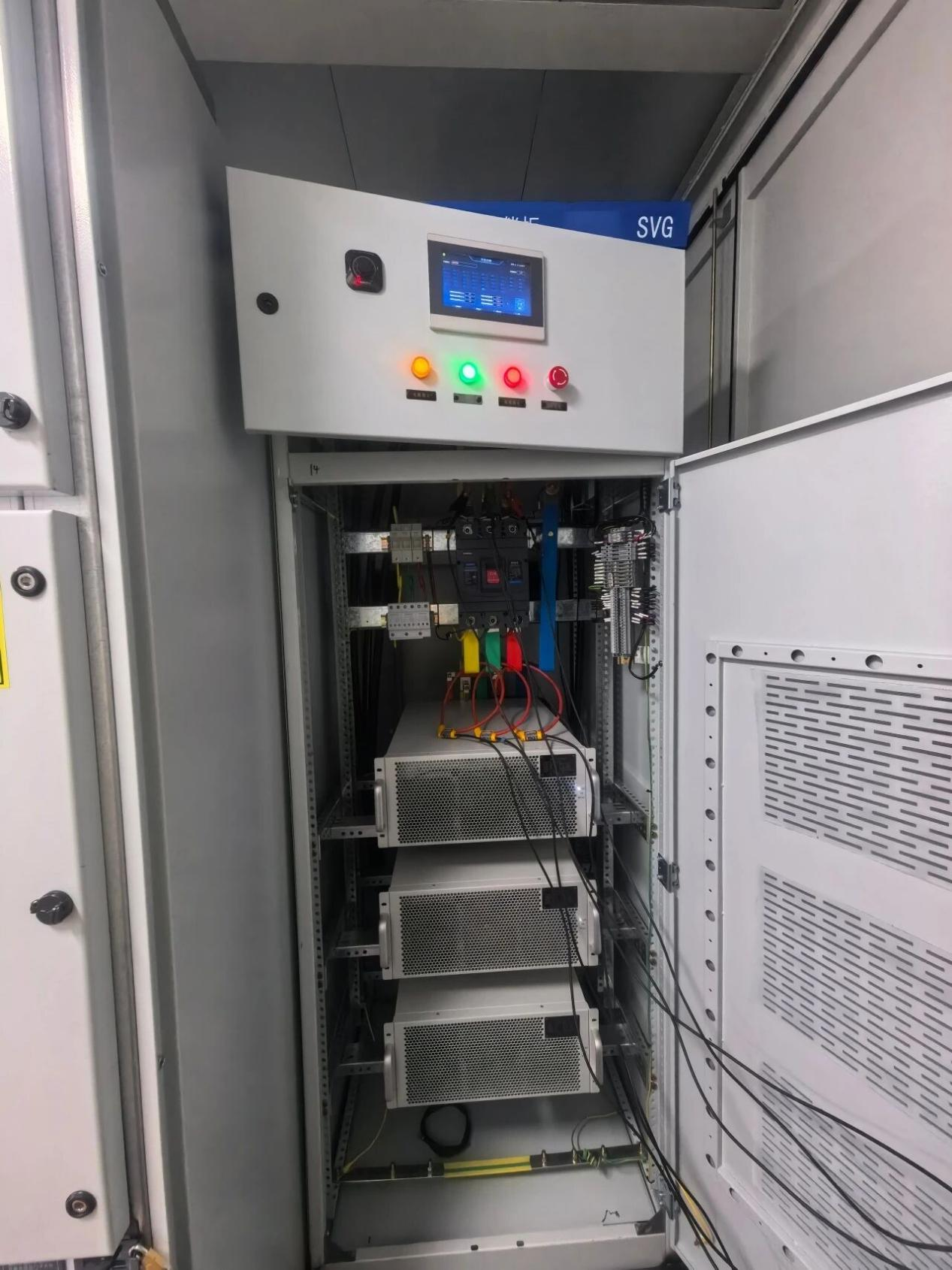

The solution employs a high-performance static var generator (SVG) and utilizes "high-source, low-compensation" technology to perform millisecond-level real-time monitoring and precise compensation of power quality at the grid connection point. This SVG system can quickly mitigate reactive power impacts caused by fluctuations in photovoltaic output, ensuring that the power factor remains consistently within the excellent range required by the assessment, fundamentally solving the problem of reactive power penalties.

03 Implementation effect

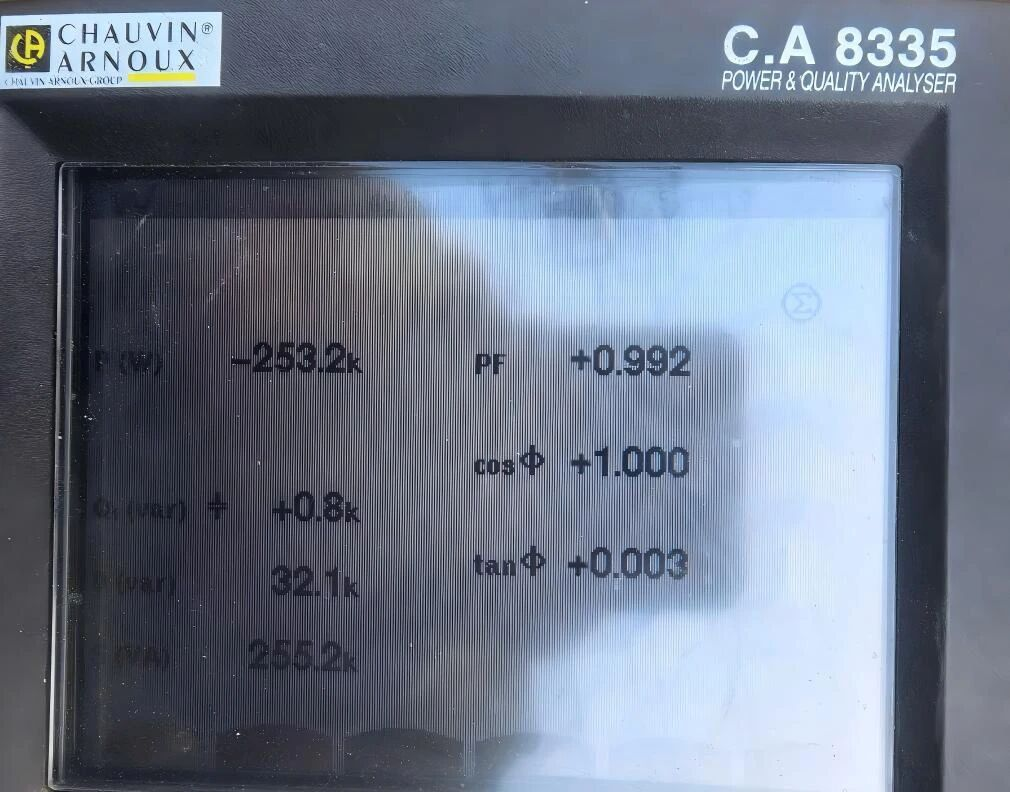

After the project was put into operation, the problem of reactive power penalties was completely resolved, and the power supply company's performance indicators improved significantly. The SVG system not only ensured the full and efficient absorption of photovoltaic power generation, but also improved the power quality and operating efficiency of the internal power grid of the plant, achieving a dual improvement in green benefits and economic returns, and laying a solid foundation for the company's future energy interconnection.

About Yidek Technology

Zhejiang Yidek Technology Co., Ltd. is a high-tech enterprise integrating R&D, production and sales, specializing in overall solutions for power quality and harmonic control.

The company has introduced advanced production equipment, technology, and manufacturing processes. Its main products include: YD series intelligent integrated power capacitors, YDK-APF active power filters, YDK-SVG static var generators, YDK-SPC three-phase unbalanced automatic adjustment devices, YDK-AVR low-voltage automatic adjustment devices, PD-354 series intelligent network power meters, YDK-3000 intelligent power monitoring and power management systems, high-voltage compensation cabinets, high-voltage reactive power compensation complete sets of devices, YDK-SVGH high-voltage dynamic reactive power compensation devices, and other power improvement equipment.
