New Project For Domestic Water Supply In Xiangshan Town, Shehong City, Sichuan Province

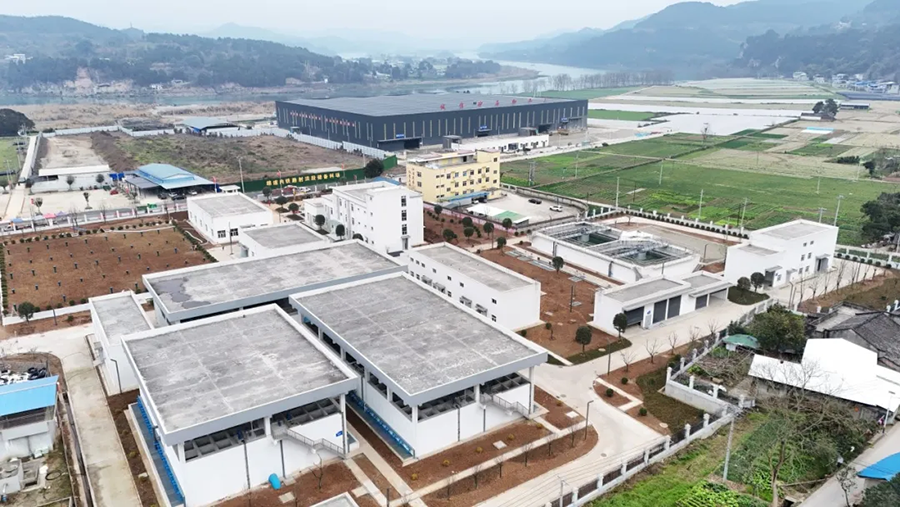

01. Site description

The domestic water supply project in Xiangshan Town, Shehong City, Sichuan Province is located in the hinterland of the mountainous area. The existing water supply system relies on high-pressure water pumps to draw water from the water source. The power supply line is more than 5 kilometers long, and the terminal voltage fluctuates frequently. Especially during the peak water consumption hours in the morning and evening, the voltage deviation exceeds ±10%, causing the water pump motor to frequently overload and shut down. The power grid structure in the mountainous area is weak, the line impedance is large, and the inductive loads such as water pump motors cause a low power factor, resulting in high power regulation charges.

Traditional capacitor compensation cabinets are slow to respond and cannot adapt to sudden load changes. In addition, high humidity and aging equipment further exacerbate the problem of unstable power supply. The new water plant needs to achieve 24-hour continuous water supply, which places strict requirements on power quality and equipment reliability. A dynamic and intelligent voltage and reactive power comprehensive management solution is urgently needed.

02. Solution

Product Introduction:

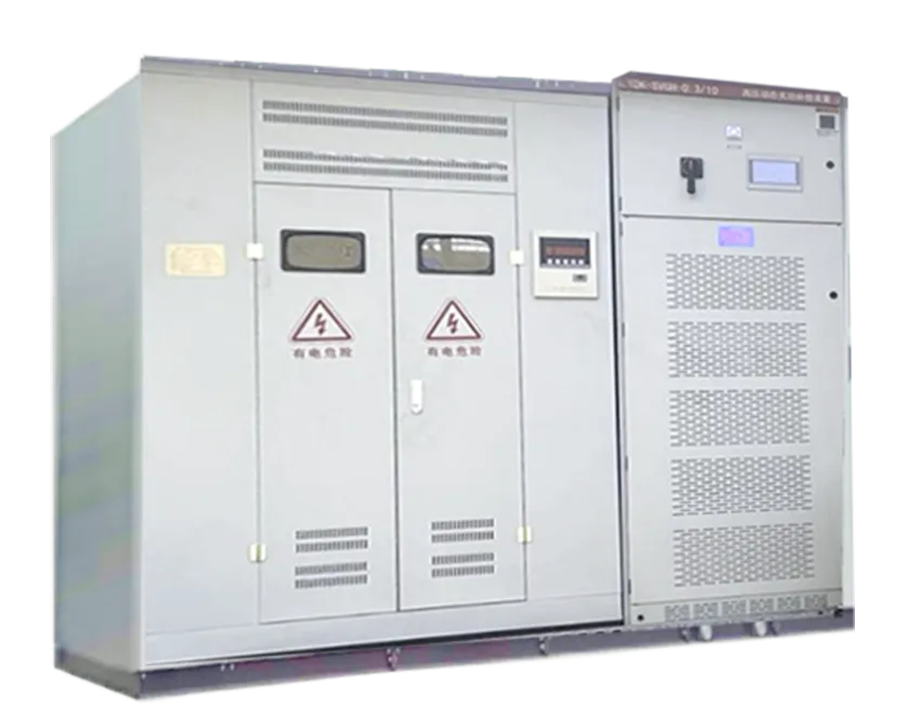

YDK-SVGH series high voltage dynamic reactive power compensation device

High-voltage dynamic reactive power compensation devices can quickly and continuously provide capacitive and inductive reactive power, achieve appropriate voltage and reactive power control, and ensure stable, efficient and high-quality operation of the power system.

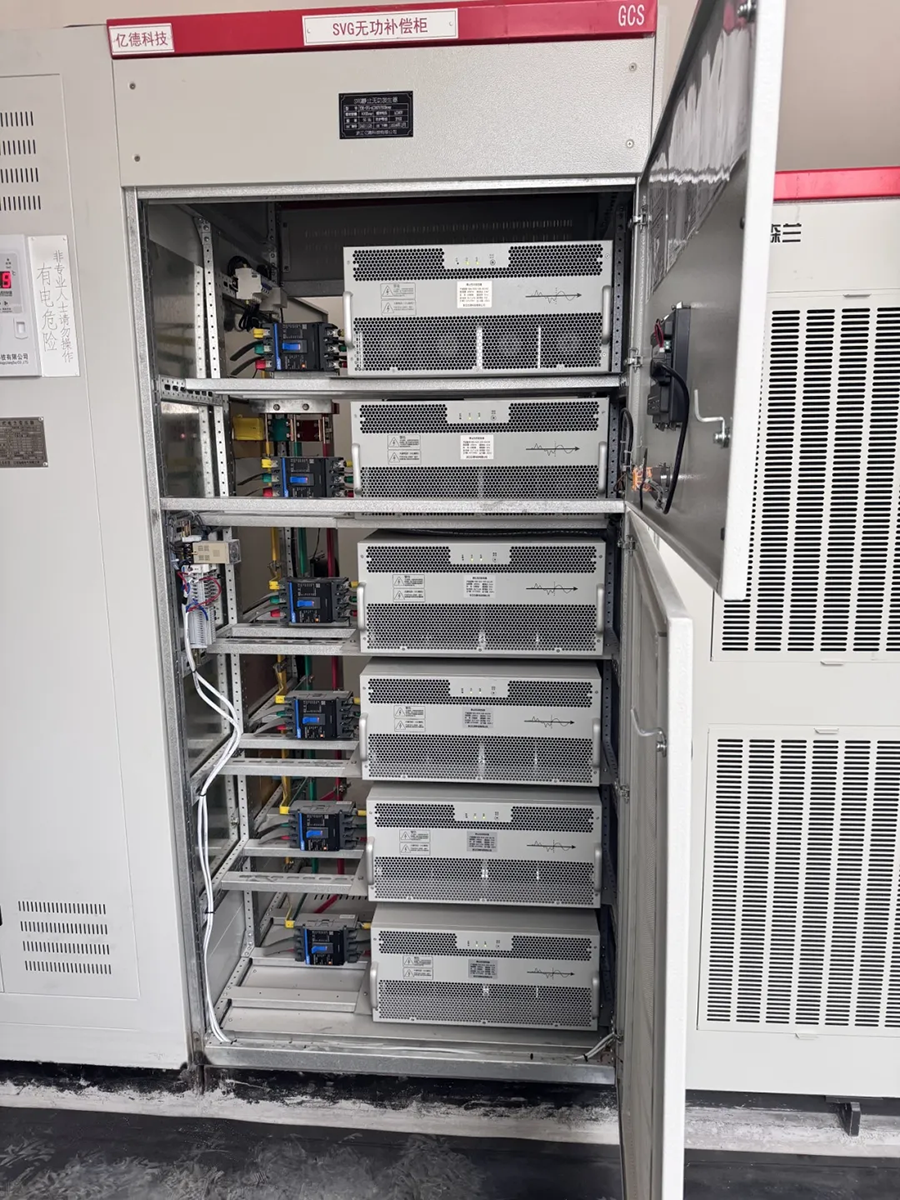

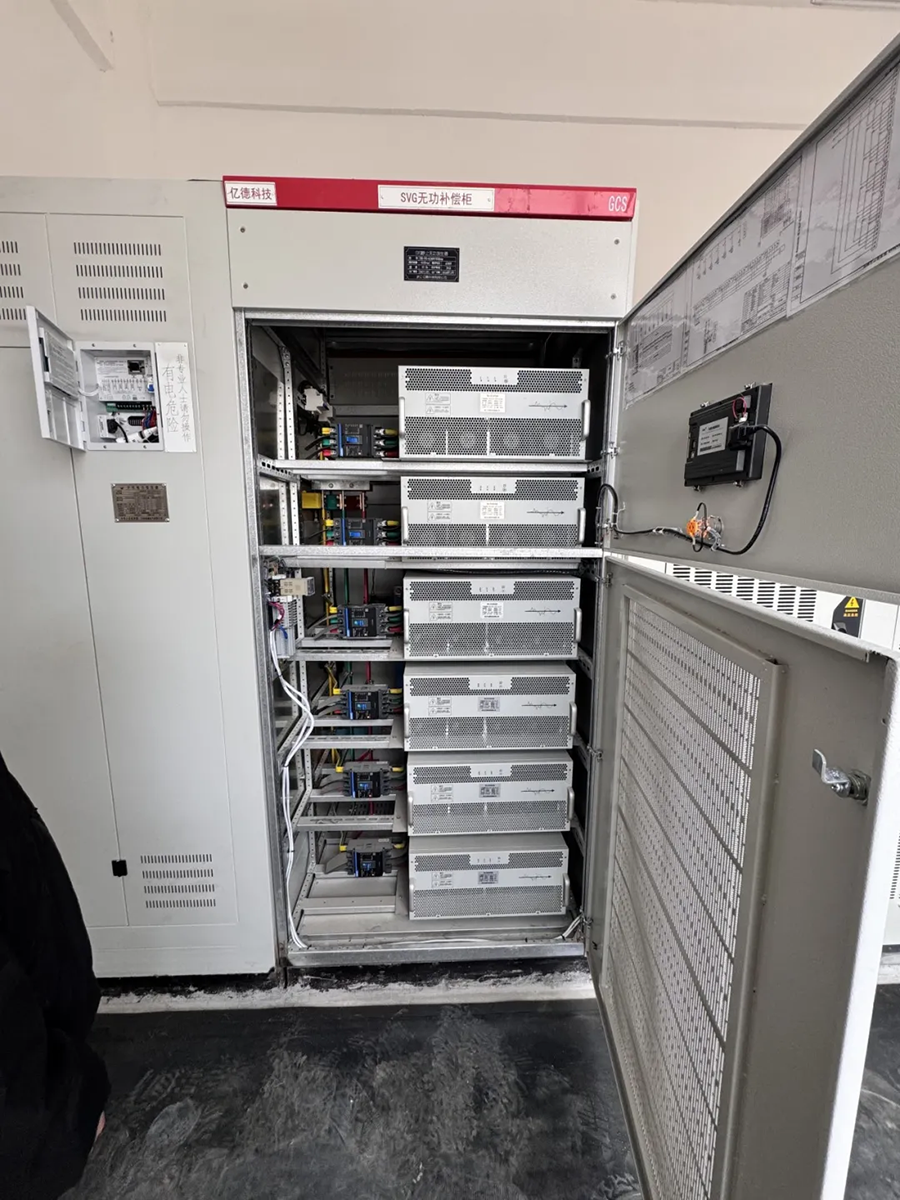

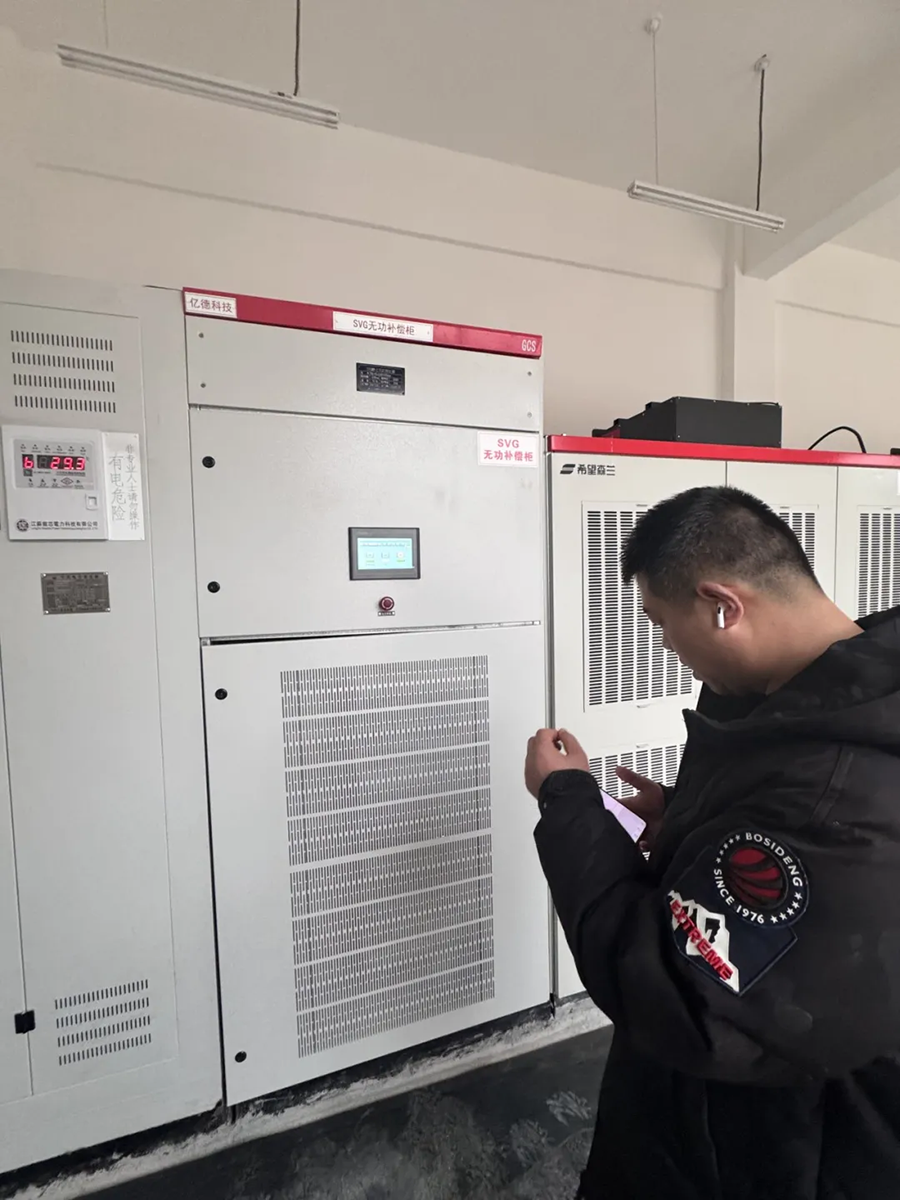

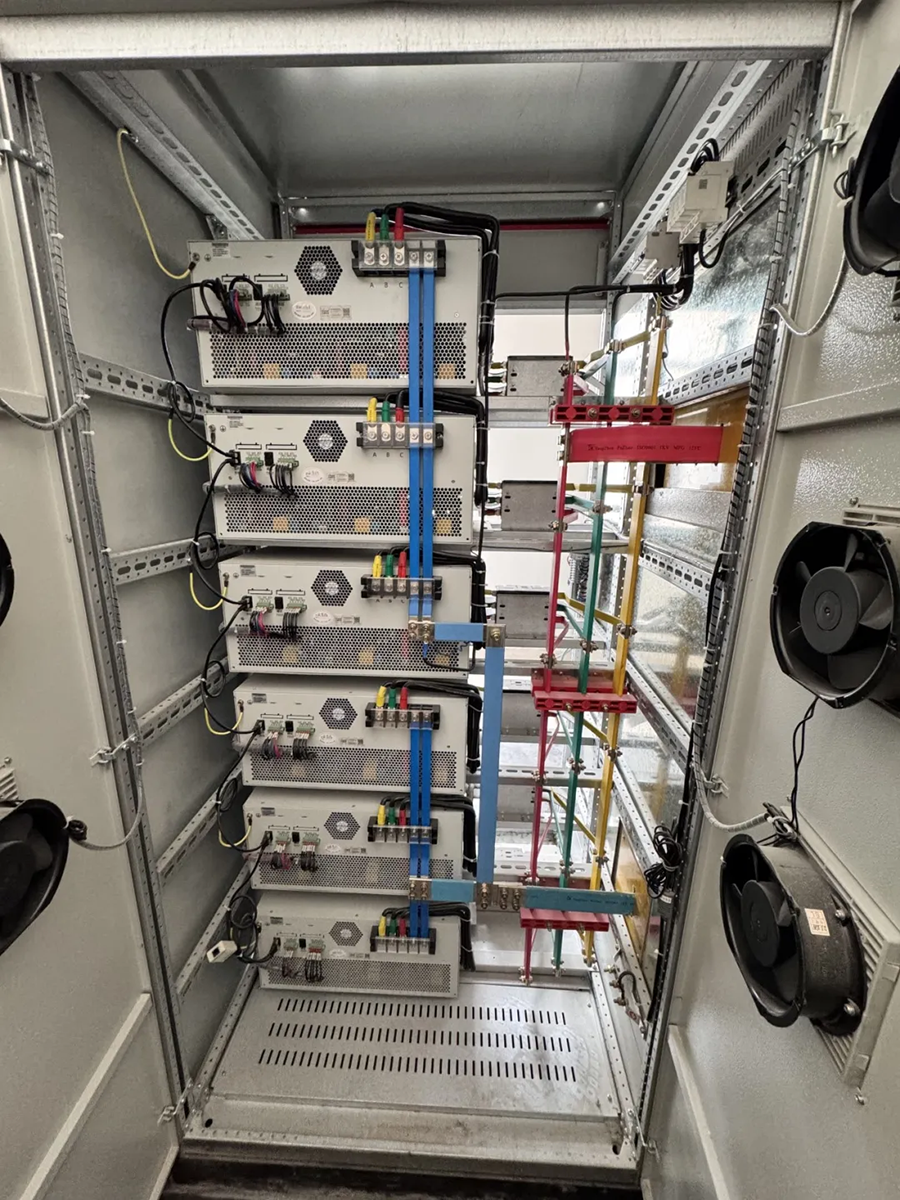

This project uses step-down high-voltage SVG technology, which integrates dynamic reactive power compensation and voltage regulation functions to quickly stabilize the voltage of the mountain power grid and eliminate the risk of water pump overload. The system is directly connected to the 10kV power grid, suppresses harmonics and resonance, adapts to humid environment operation, and is connected to the smart water platform to achieve intelligent management and control, providing efficient and reliable power guarantee for the water supply system.

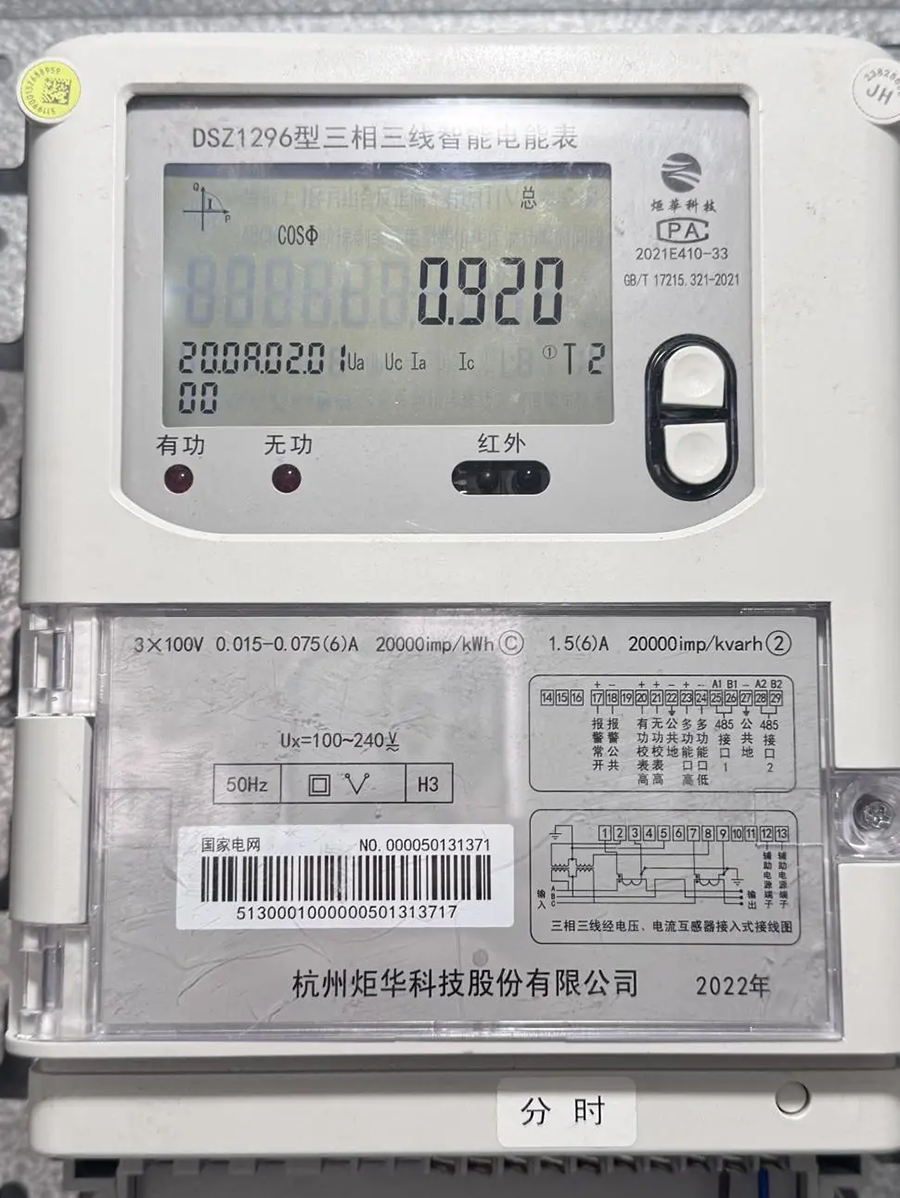

Before treatment: power factor 0.920

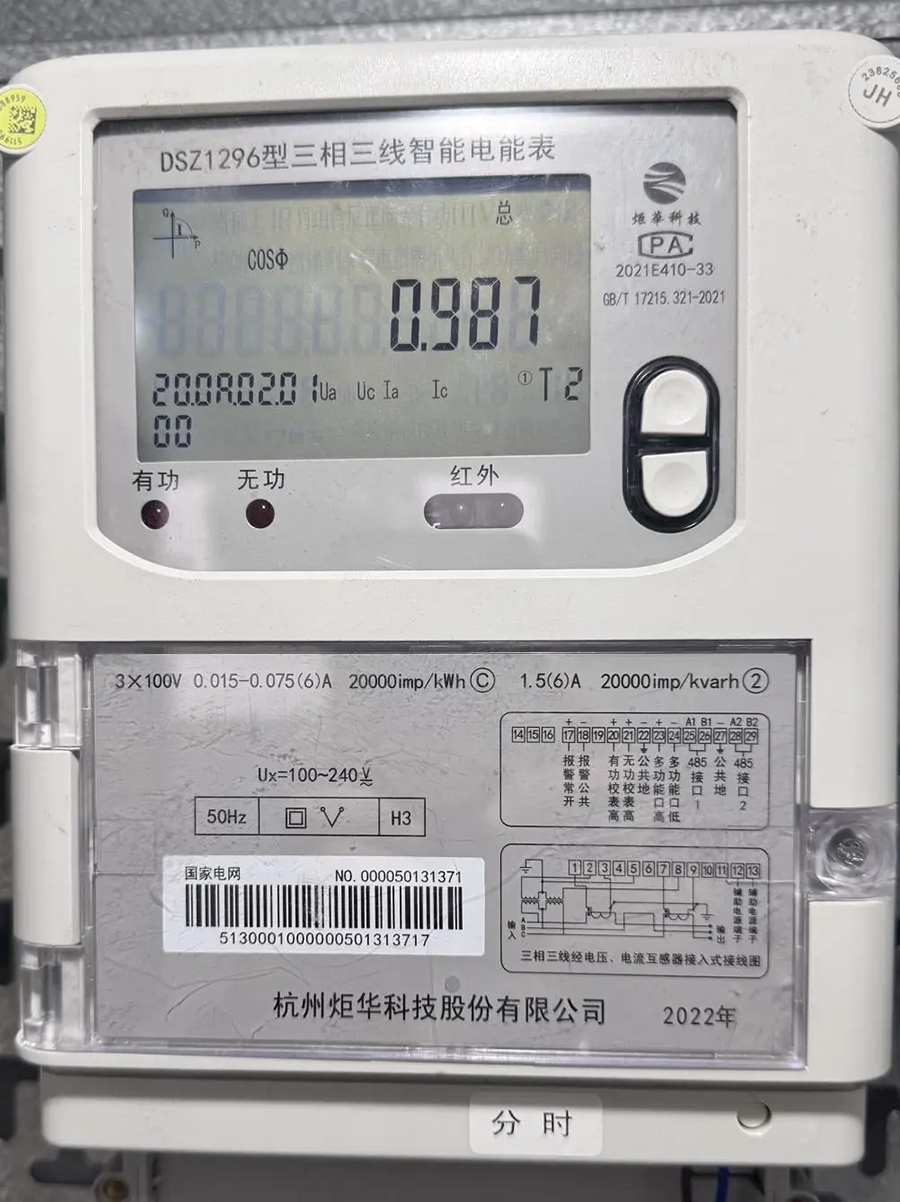

After treatment: power factor 0.987

After completion, the project will solve the hidden dangers of water use for residents in Xiangshan Town, provide a replicable technical model for the construction of rural smart water services, and help promote the coordinated advancement of rural revitalization and low-carbon development goals.
