Intelligent Power Capacitors
YD-868、YD-8C
Integrated design, centralized reactive power compensation for power distribution system, local power factor correction for motor equipment, energy-saving system based on power factor correction

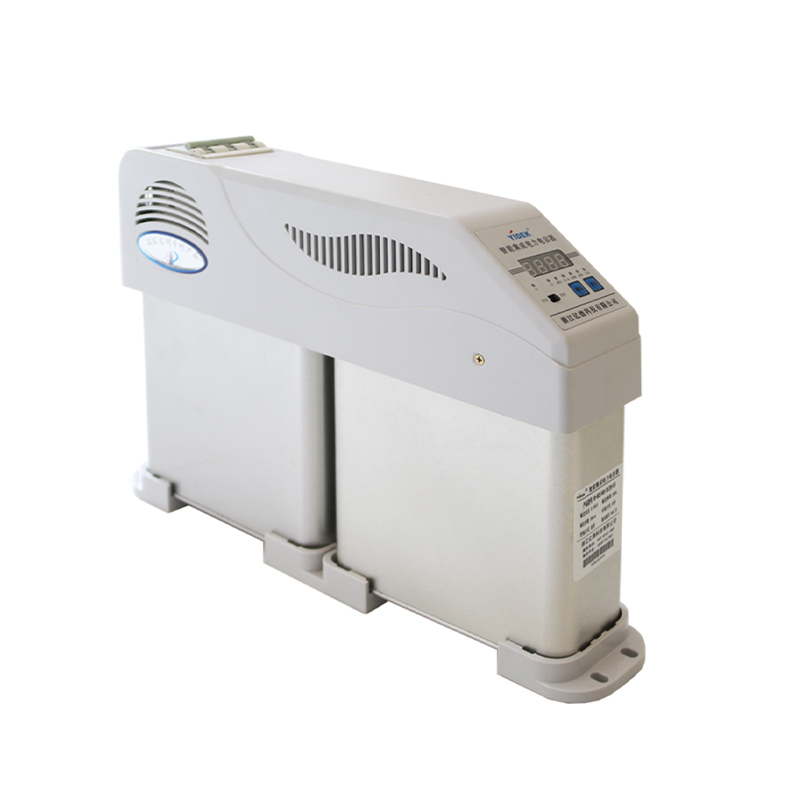

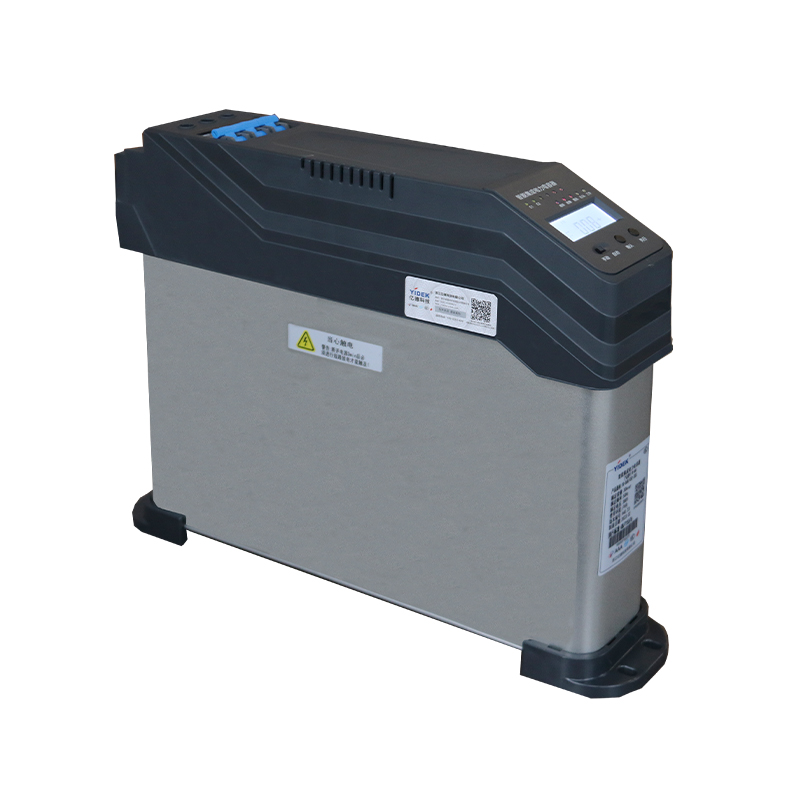

YD-8C SeriesThe 8C series intelligent capacitor is a new generation of reactive power compensation equipment for 0.4kV low-voltage power grids that is highly energy-efficient, reduces line losses, and improves power factor and power quality. It consists of an intelligent measurement and control unit, a zero-crossing switching unit, a protection unit, and two (△-type) or one (Y-type) low-voltage power capacitors. It has changed the bulky and heavy structural mode of traditional reactive power compensation devices. As a result, the new generation of low-voltage reactive power compensation equipment has better compensation effect, smaller size, lower power consumption, cheaper price, more cost savings, more flexible use, more convenient maintenance, longer service life, and higher reliability, which meets the higher requirements of modern smart grids for reactive power compensation.
Product model specification

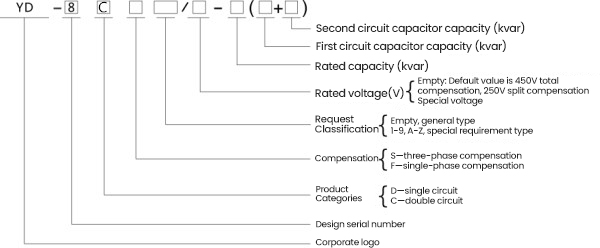

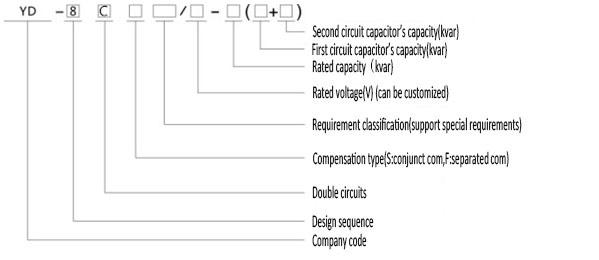

For example: YD-8CS/450-30, which means a common common compensation intelligent integrated power capacitor with a capacity of 30kvar and a rated voltage of 450V.

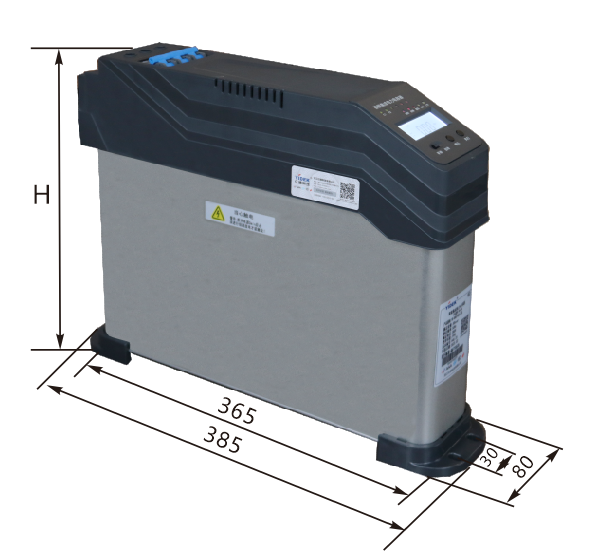

General product model specificationsCompensation | Capacity
(Kvar) | Voltage（V） | Capacitor combination
(Kvar) | Height
H(mm) |
|
Three-phase compensation | 70 | 450 | 35+35 | 435 |
60 | 450 | 30+30 | 385 |
50 | 450 | 25+25 | 335 |
40 | 450 | 20+20 | 285 |
35 | 450 | 15+20 | 285 |
30 | 450 | 10+20 | 285 |
25 | 450 | 10+15 | 282 |
20 | 450 | 10+10 | 225 |
10 | 450 | 5+5 | 225 |
7.5 | 450 | 2.5+5 | 225 |
Phase compensation | 30 | 250 | | 335 |
25 | 250 | | 335 |
20 | 250 | | 285 |
15 | 250 | | 285 |
10 | 250 | | 225 |
5 | 250 | | 225 |
YD-868 Series

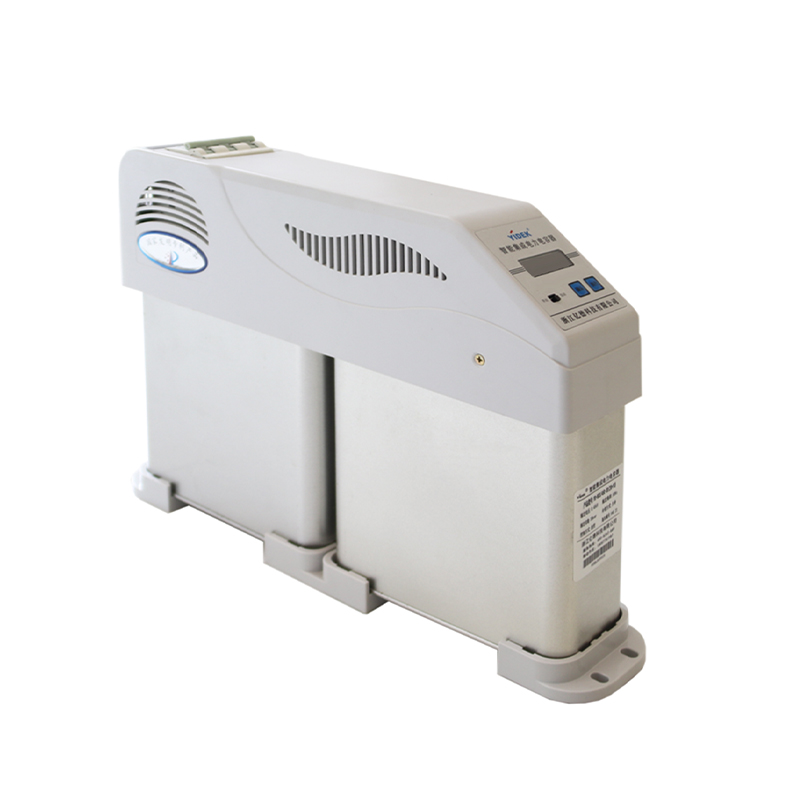

YD-868 intelligent integrated power capacitor is a new generation of reactive power compensation equipment with high breaking capacity, which can save energy efficiently, reduce line loss, improve power factor and power quality in 0.4kV low-voltage power grid. It consists of intelligent measurement and control unit, zero-crossing switching unit, protection unit, two (△ type) or two (Y type) low-voltage power capacitors. It has changed the bulky and heavy structure of traditional reactive power compensation devices. As a result, the new generation of low-voltage reactive power compensation equipment has better compensation effect, smaller size, lower power consumption, cheaper price, more cost savings, more flexible use, more convenient maintenance, longer service life, and higher reliability, which meets the higher requirements of modern smart grids for reactive power compensation.

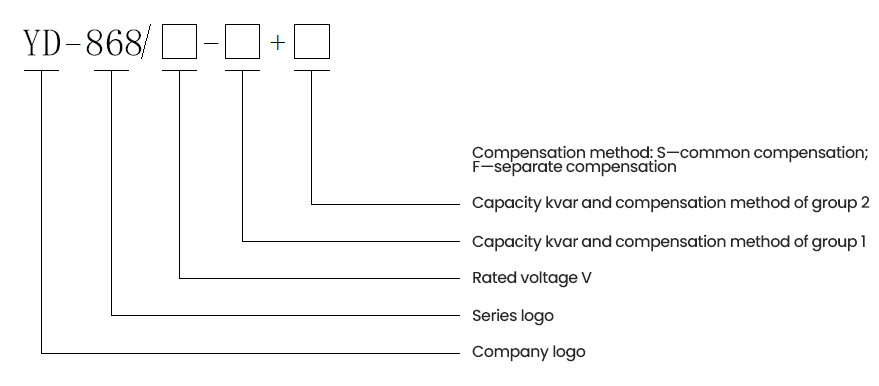

Product model specification description

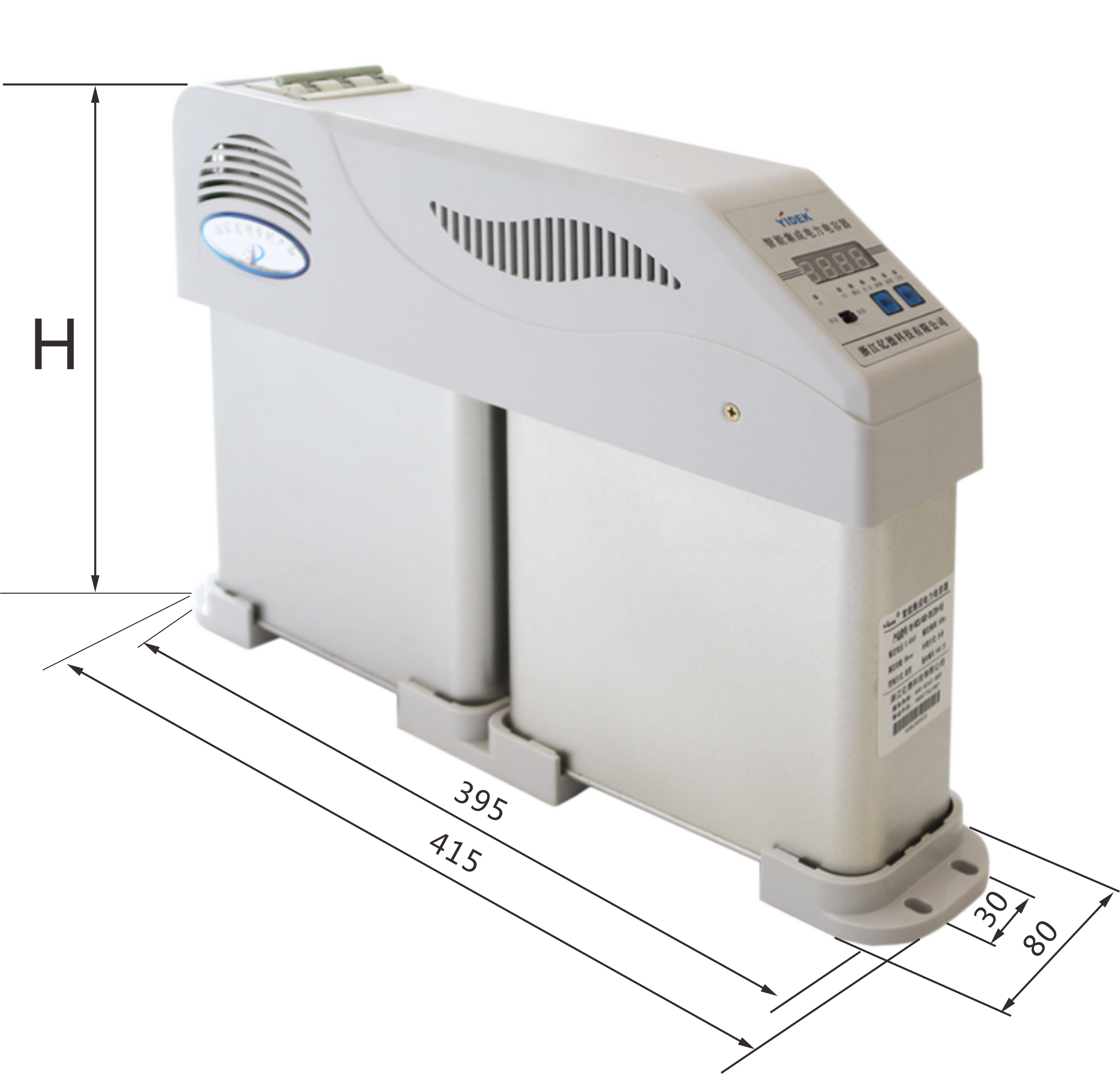

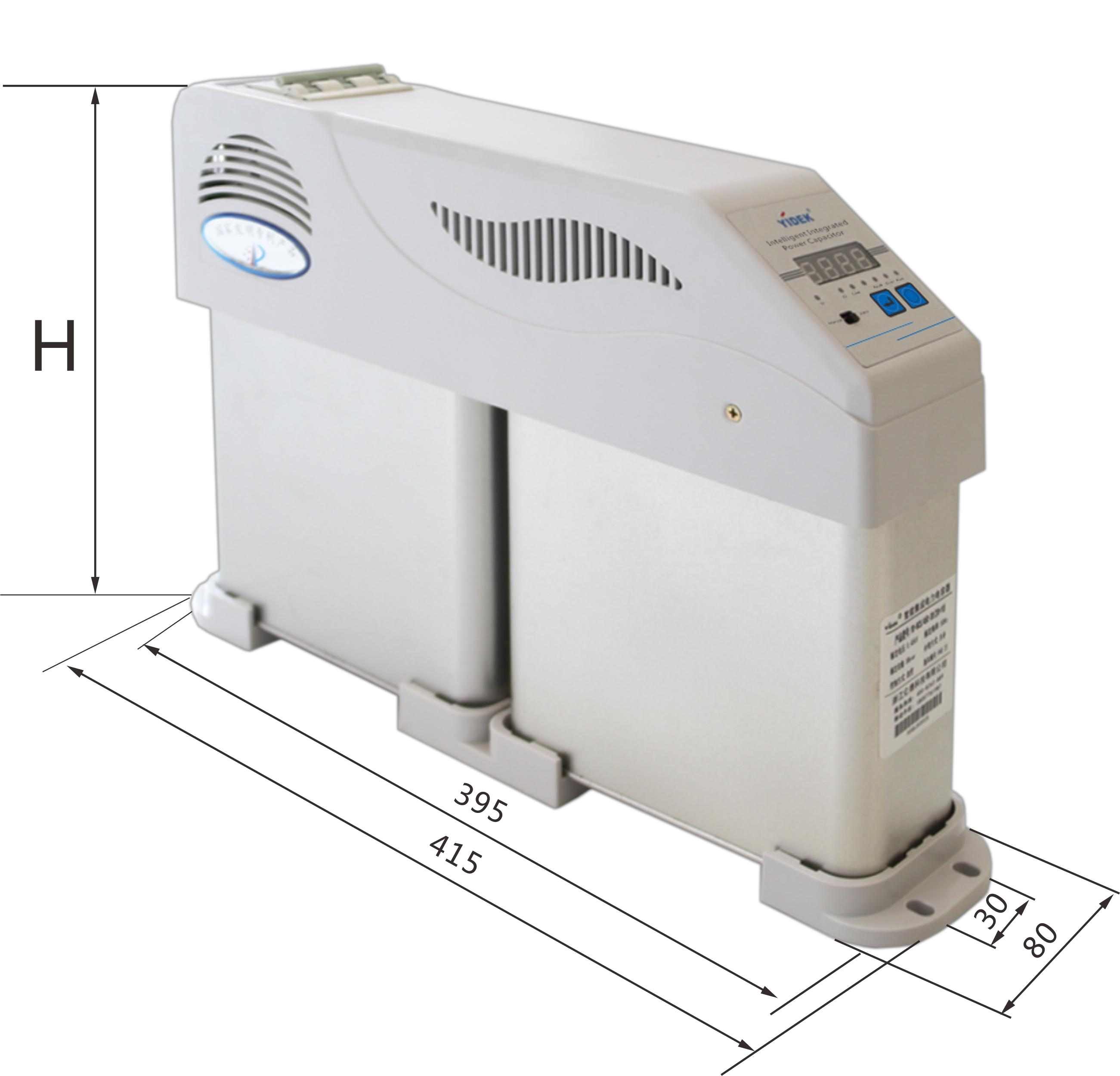

Compensation | Capacity
(Kvar) | Rated voltage
(V) | Capacitor combination
(Kvar) | Height
H(mm) |
|
Three-phase compensation | 50 | 450 | 25+25 | 320 |
40 | 450 | 20+20 | 280 |
30 | 450 | 20+10 | 280 |
20 | 450 | 10+10 | 240 |
15 | 450 | 10+5 | 195 |
Compensation | 30 | 250 | | 280 |
20 | 250 | | 240 |
10 | 250 | | 195 |
Double Points Compensation | 30 | 250 | 20+10 | 280 |
20 | 250 | 10+10 | 240 |
10 | 250 | 5+5 | 195 |
YD-8C Series
Technical Parameters and Working Environment
Input Voltage: 380V±20%.
Operating Frequency: 50Hz±2.5Hz.
Implementation Standard: GB/T 15576.
Operating Temperature: -25℃～+55℃.
Relative Humidity: Maximum Temperature is +40℃, Relative Humidity does not exceed 50%. At lower temperatures, a higher relative humidity is allowed, considering that temperature changes may occasionally produce moderate condensation.
Altitude: ≤2000m.
YD-868 Series
Technical Parameters and Working Environment
Input Voltage: 380V±20%.
Operating Frequency: 50Hz±2.5Hz.
Implementation Standard: GB/T 15576.
Operating Temperature: -25℃～+55℃.
Relative Humidity: Maximum Temperature is +40℃, Relative Humidity does not exceed 50%. At lower temperatures, a higher relative humidity is allowed, considering that temperature changes may occasionally produce moderate condensation.
Altitude: ≤2000m.
